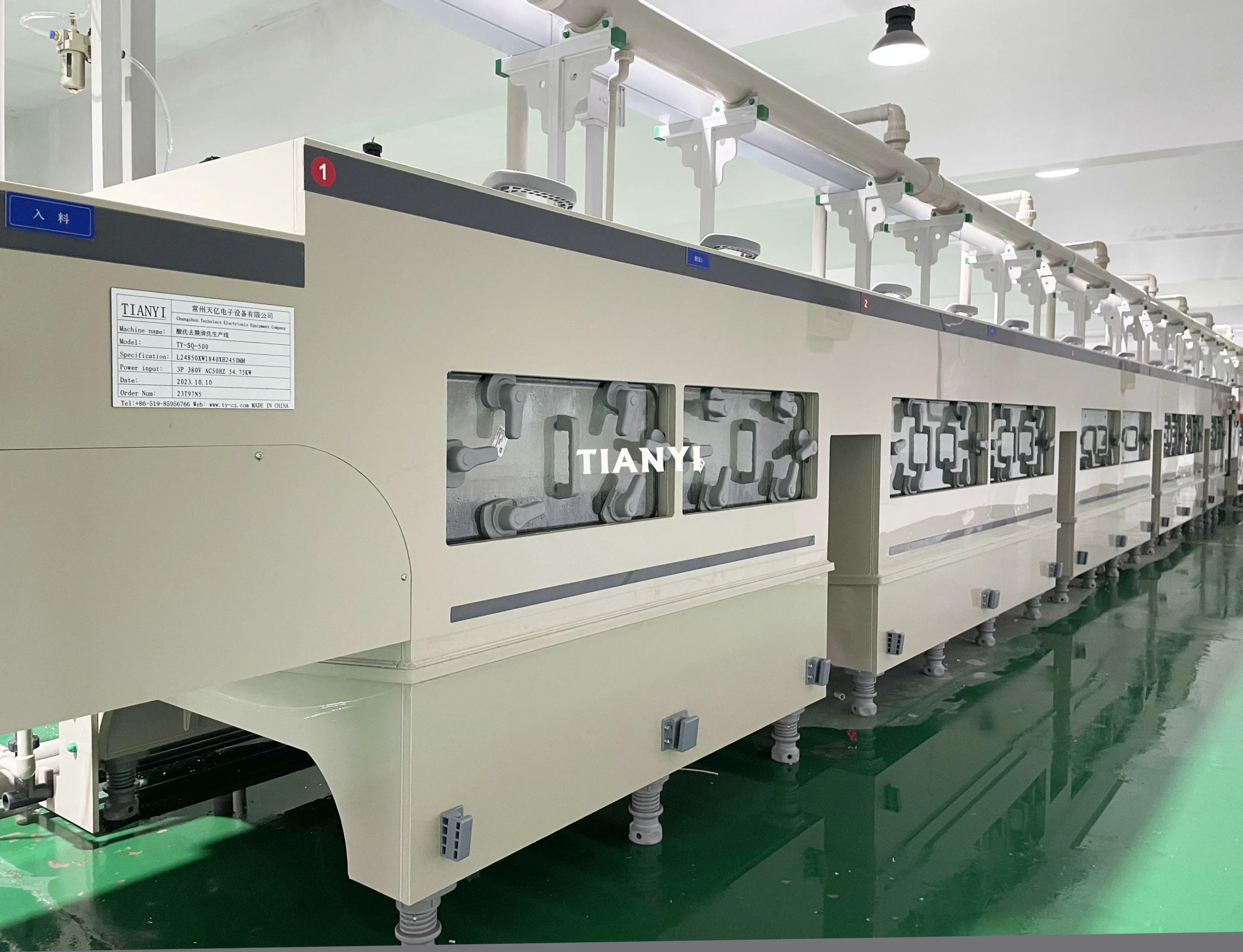

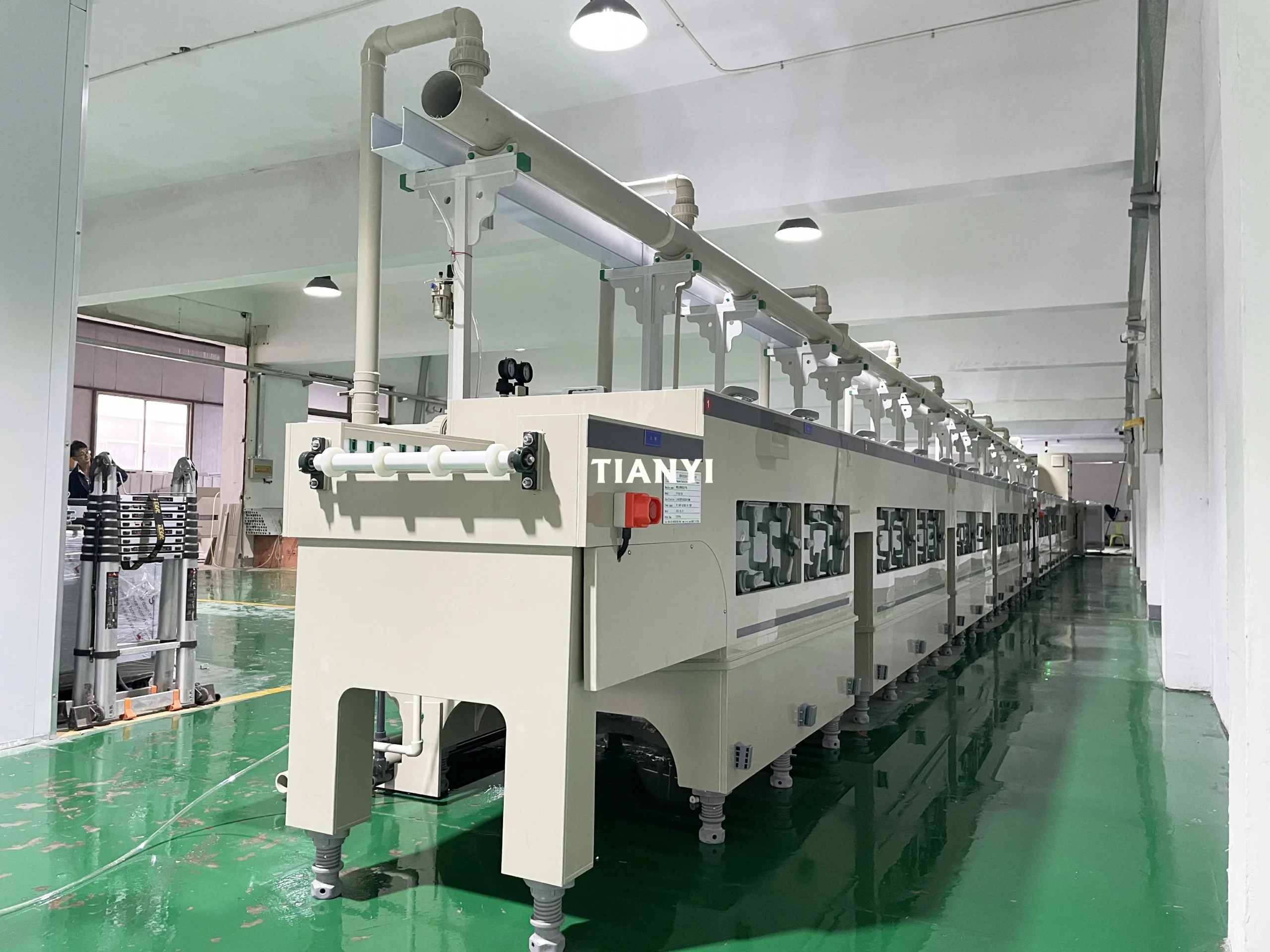

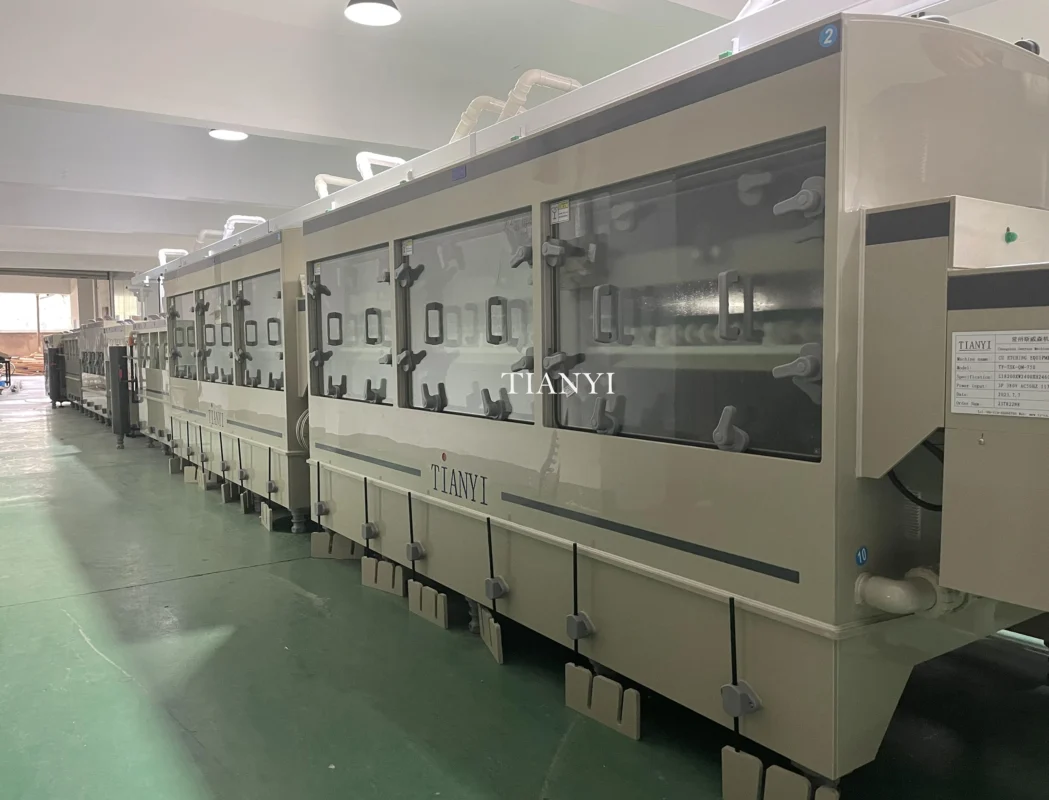

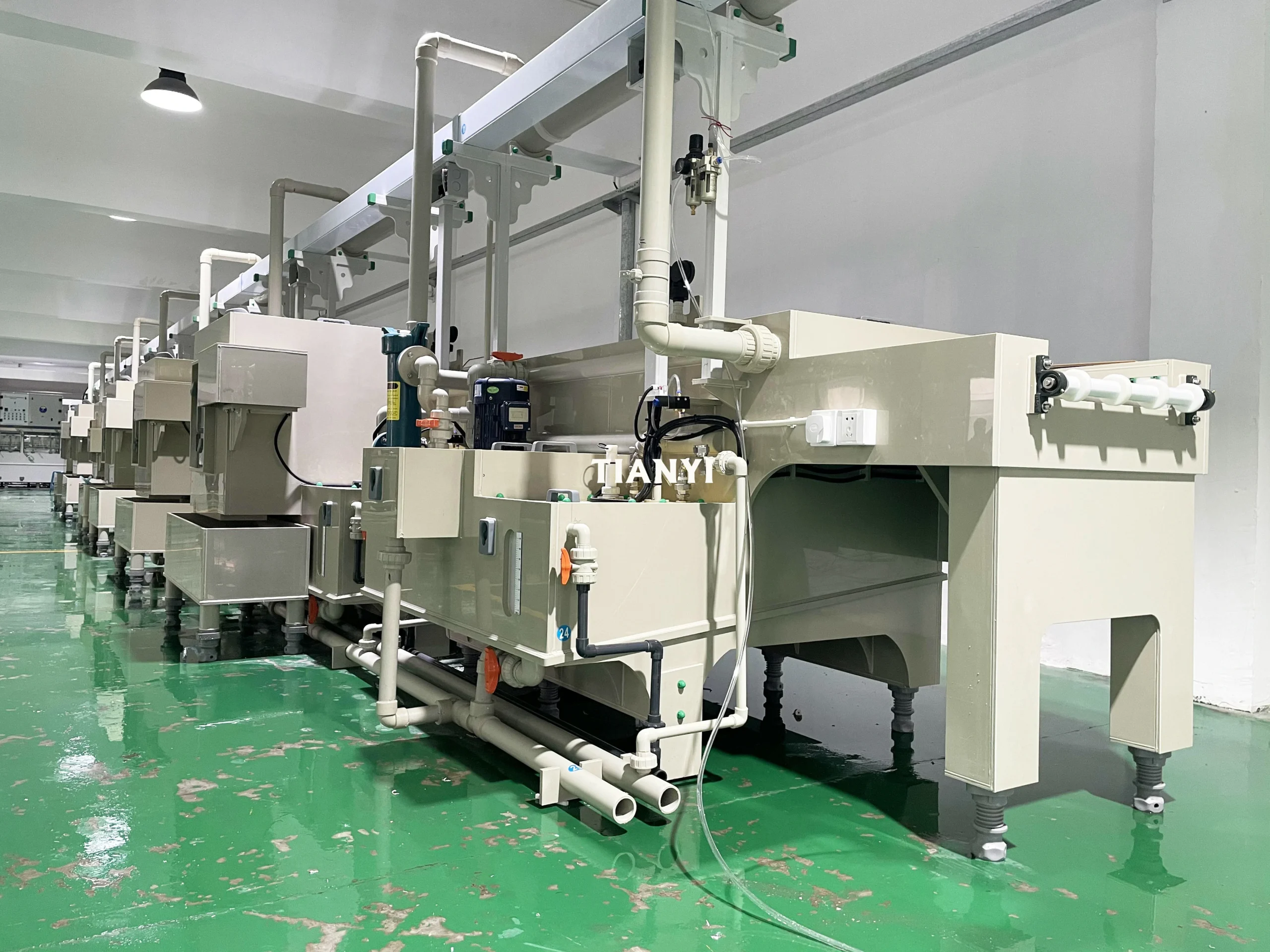

Roll to roll stripping machine for aluminum RFID
Specifications:
- Stripping machine process includes: Loading →Acid washing →Recycle water1 →Stripping1/2/3/4/5/6 →Recycle water2/3/4/5/6 → DI water washing→Squeezing → Cold blower → Hot air drying → Unloading
- Dimension: L24850xW1840xH2450MM
- Effective working width: 500mm
- Stripping heating/cooling: Electric heating

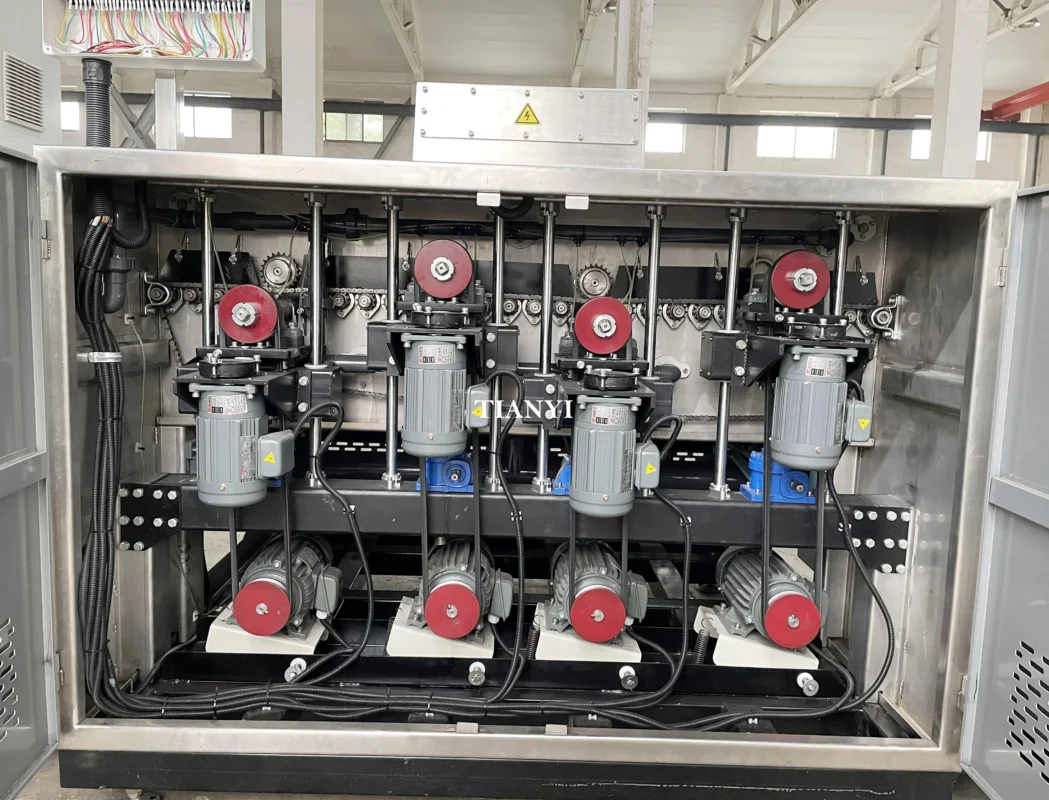

- Stripping pump: 7.5HP 6SET double side Stripping
- Total power consumption: 54.75W
- Guarantee: 1year
- Optional: NAOH auto dosing system; waste gas scrubber(acid fume treatment);Slag dryer
+8615895086578
Mobile
sales@ty-cz.com
Stripping machine is waiting for you.
Constructed with a corrosion-resistant body and advanced PP material, roll to roll stripping machine for aluminum RFID.

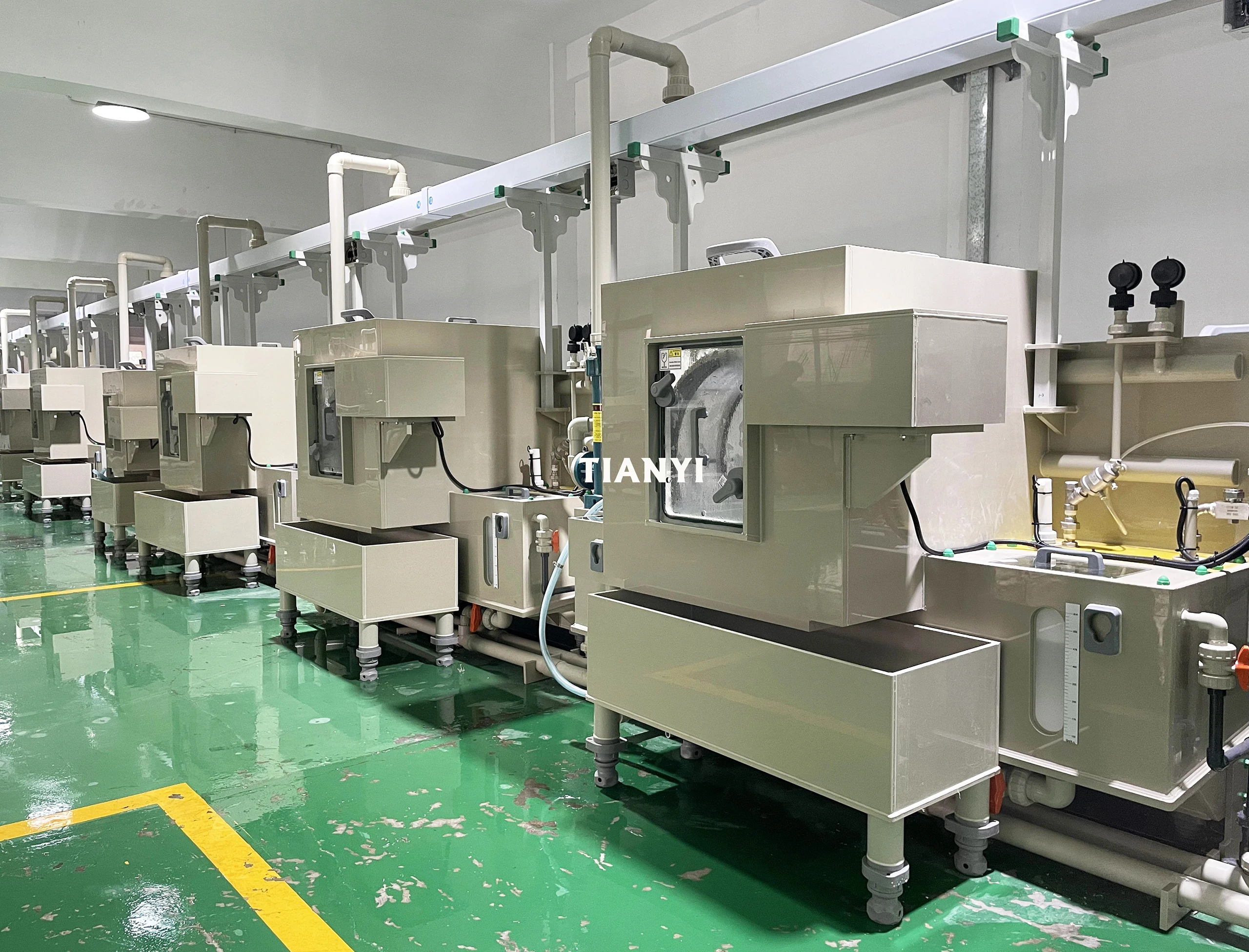

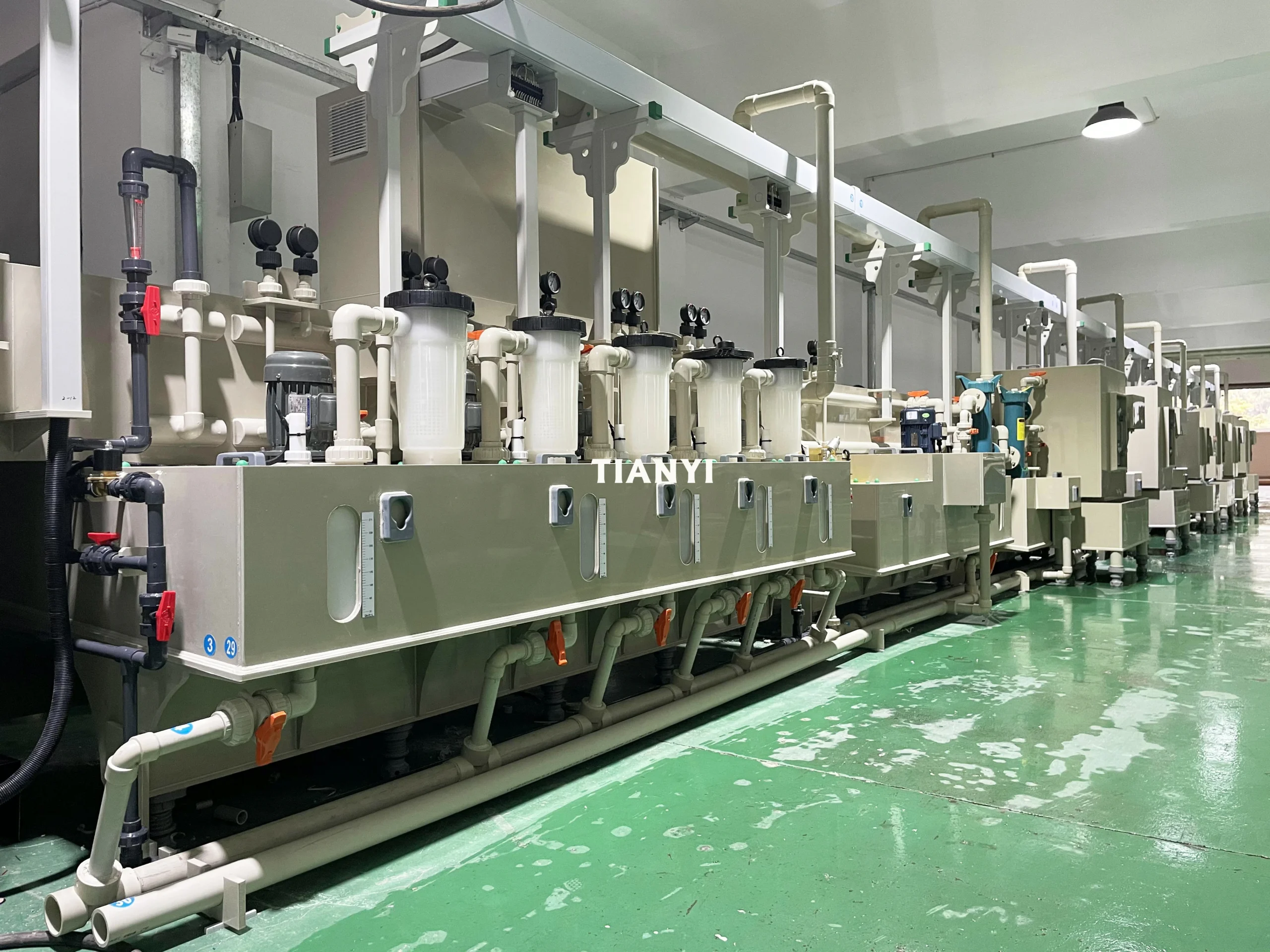

Stripping module assemble film separator and slag dryer. The film separator efficiently filters and separates ink residues and copper particles from the process solution.
The separated sludge settles into the bottom tray. The slag dryer working for drying the wet sludge into solid powder for easy collection and disposal.
This system keeps the solution clean and stable, extends its service life, and reduces maintenance frequency
