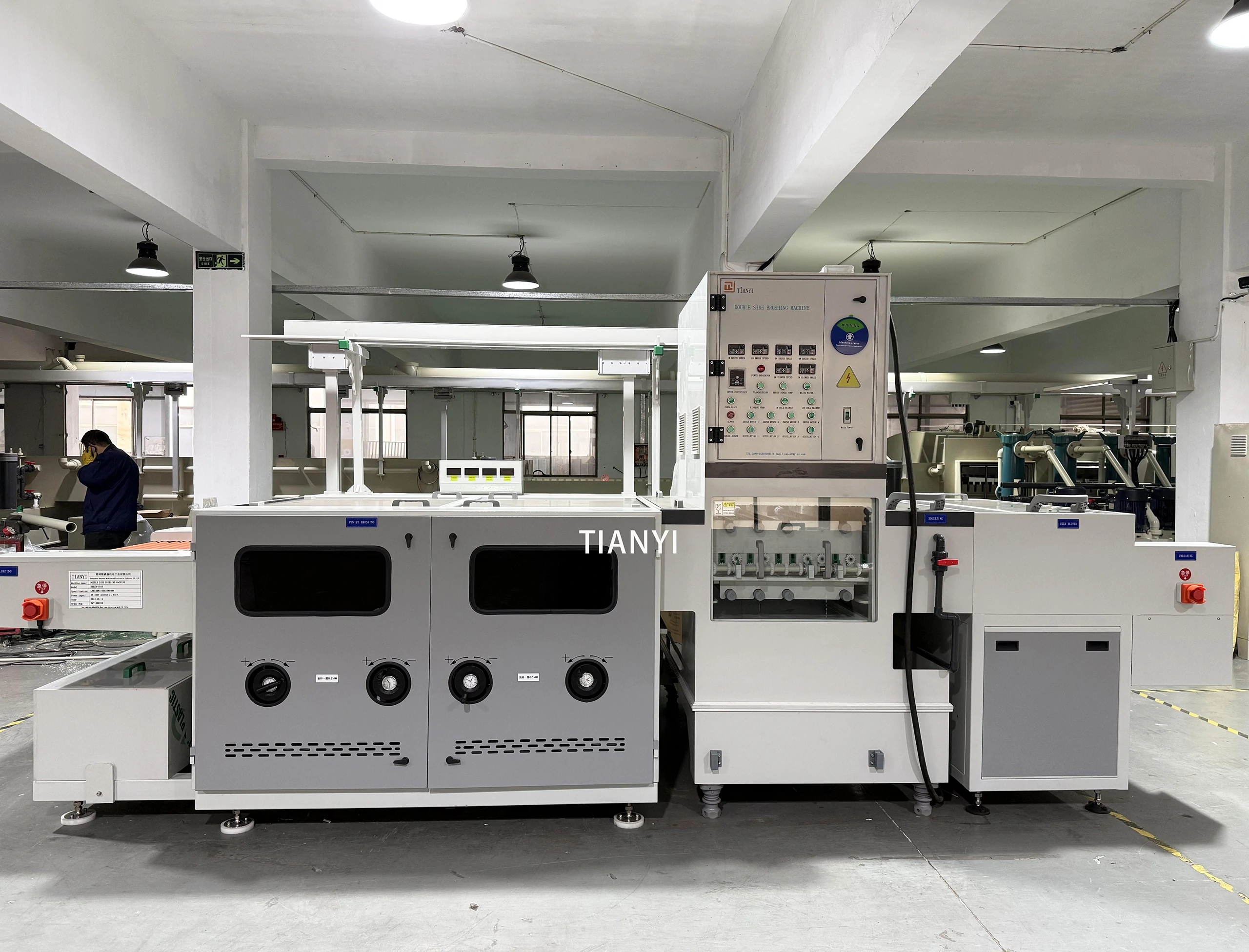

Brushing machine for Stainless steel Cutting Die
Specifications:
- Brushing machine process includes: Loading → Brushing → Recycle water washing(1/2) → DI water washing→Squeezing → Cold blower → Unloading.
- Dimension: L4880xW2200xH2400MM
- Effective working width: 1000mm
- Brushing heating/cooling: None

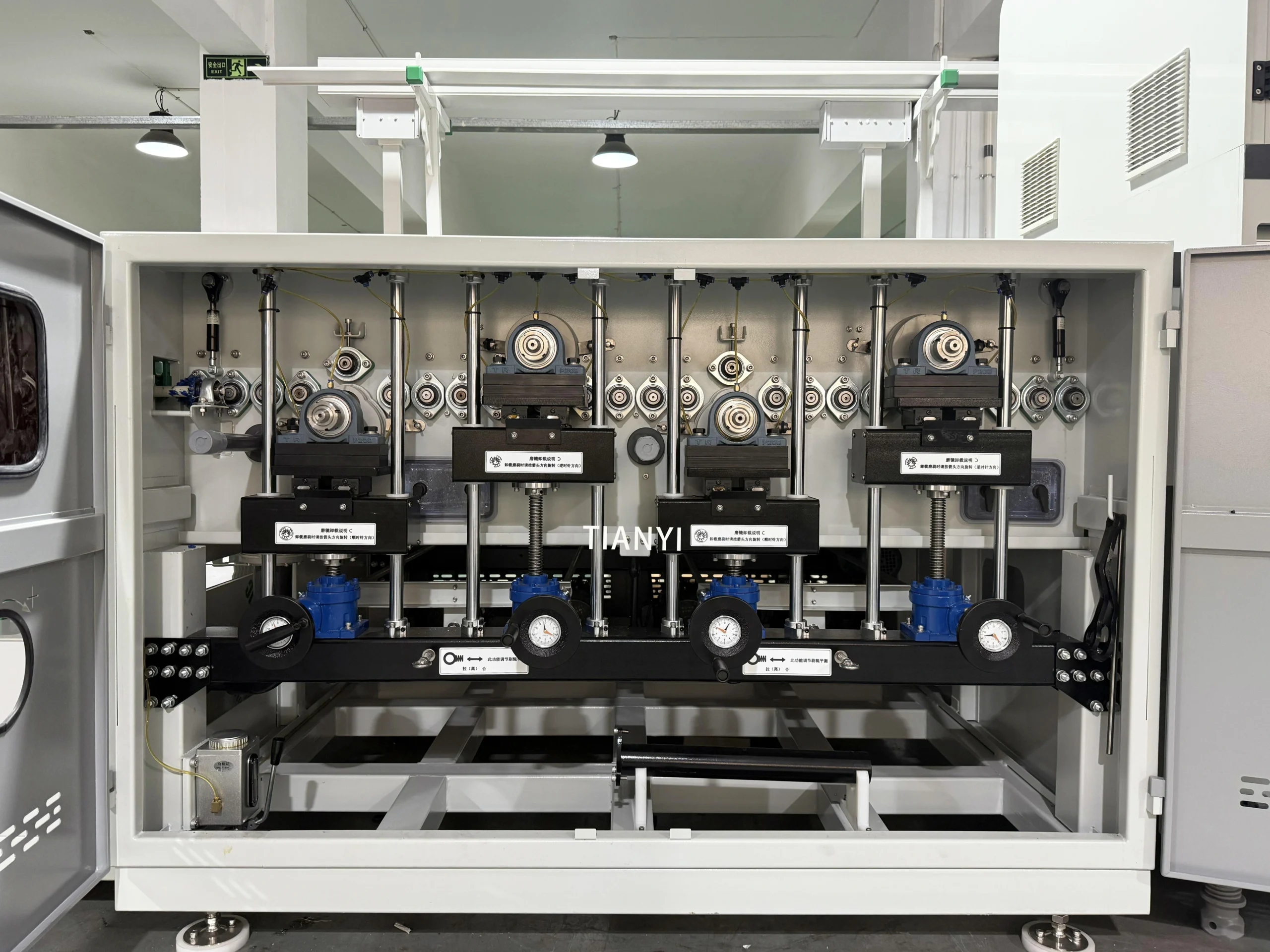

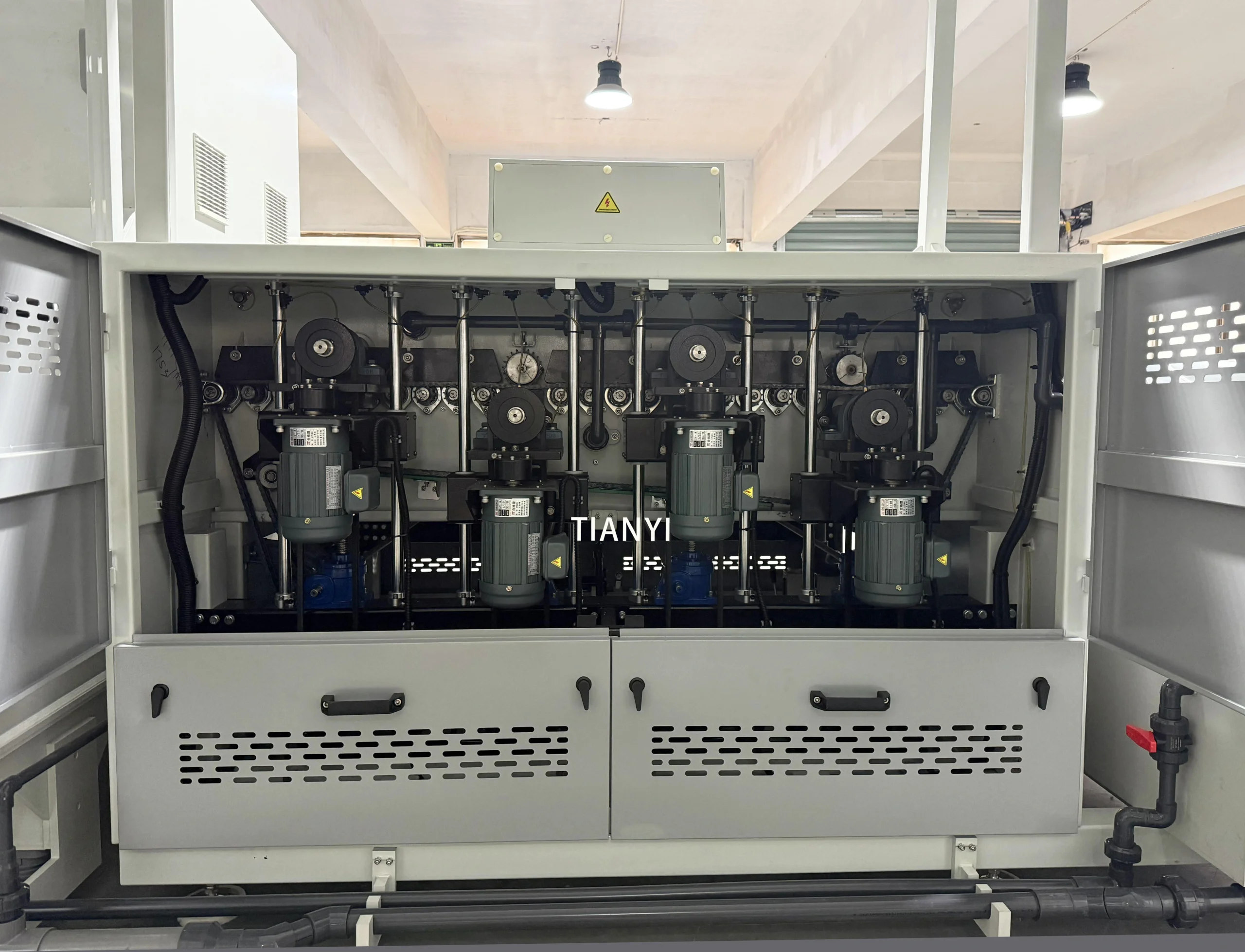

- Brushing motor: 2.2KW 4SET with 200W 4SET Oscillation motor
- Total power consumption: 23.45KW
- Guarantee: 1year
- Optional: Auto loader and Unloader
+8615895086578
Mobile
sales@ty-cz.com
Brushing machine is waiting for you.

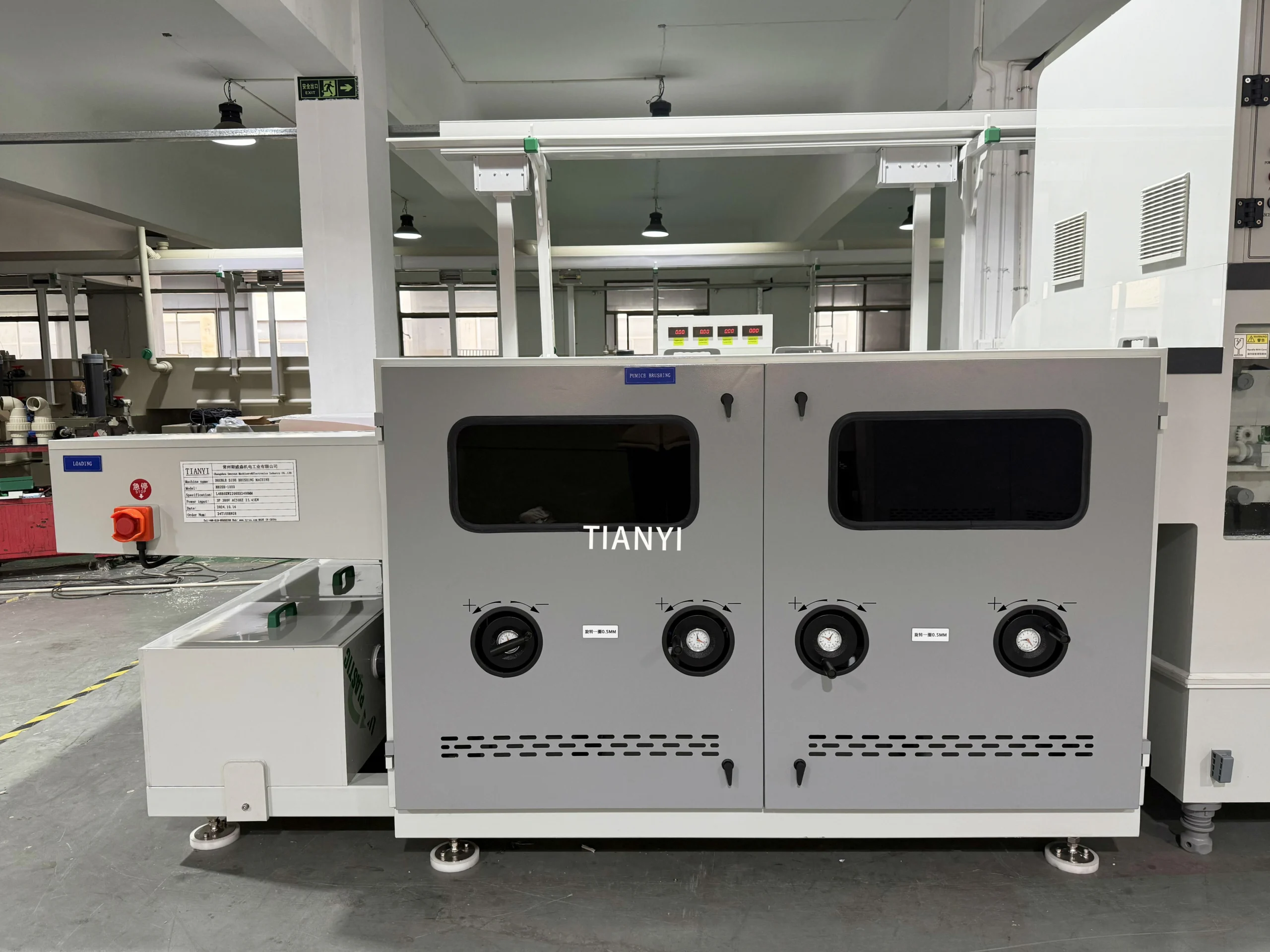

The brushing module is constructed with a robust stainless steel frame, other plastic part made of PVC sheets for excellent corrosion resistance.

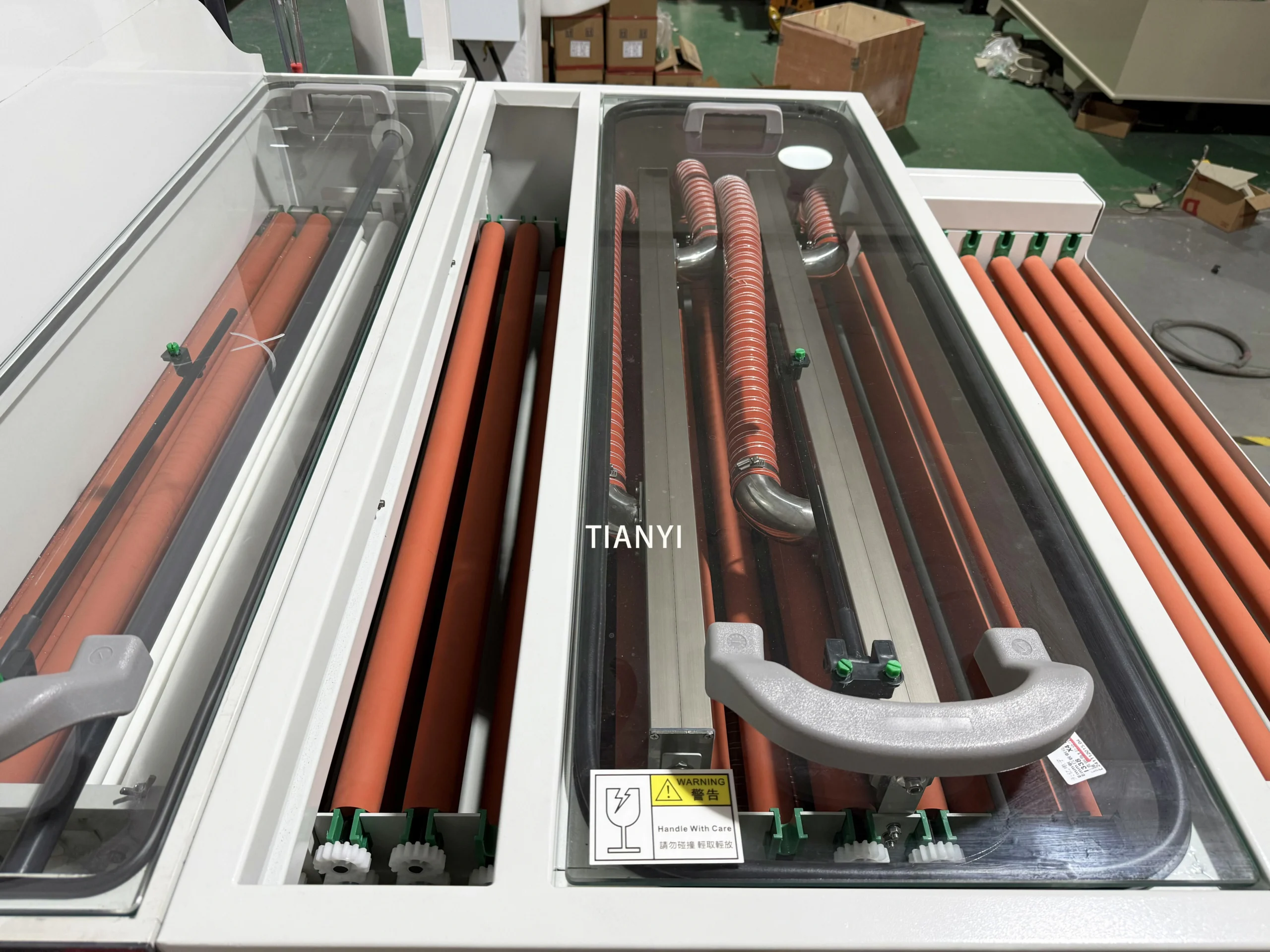

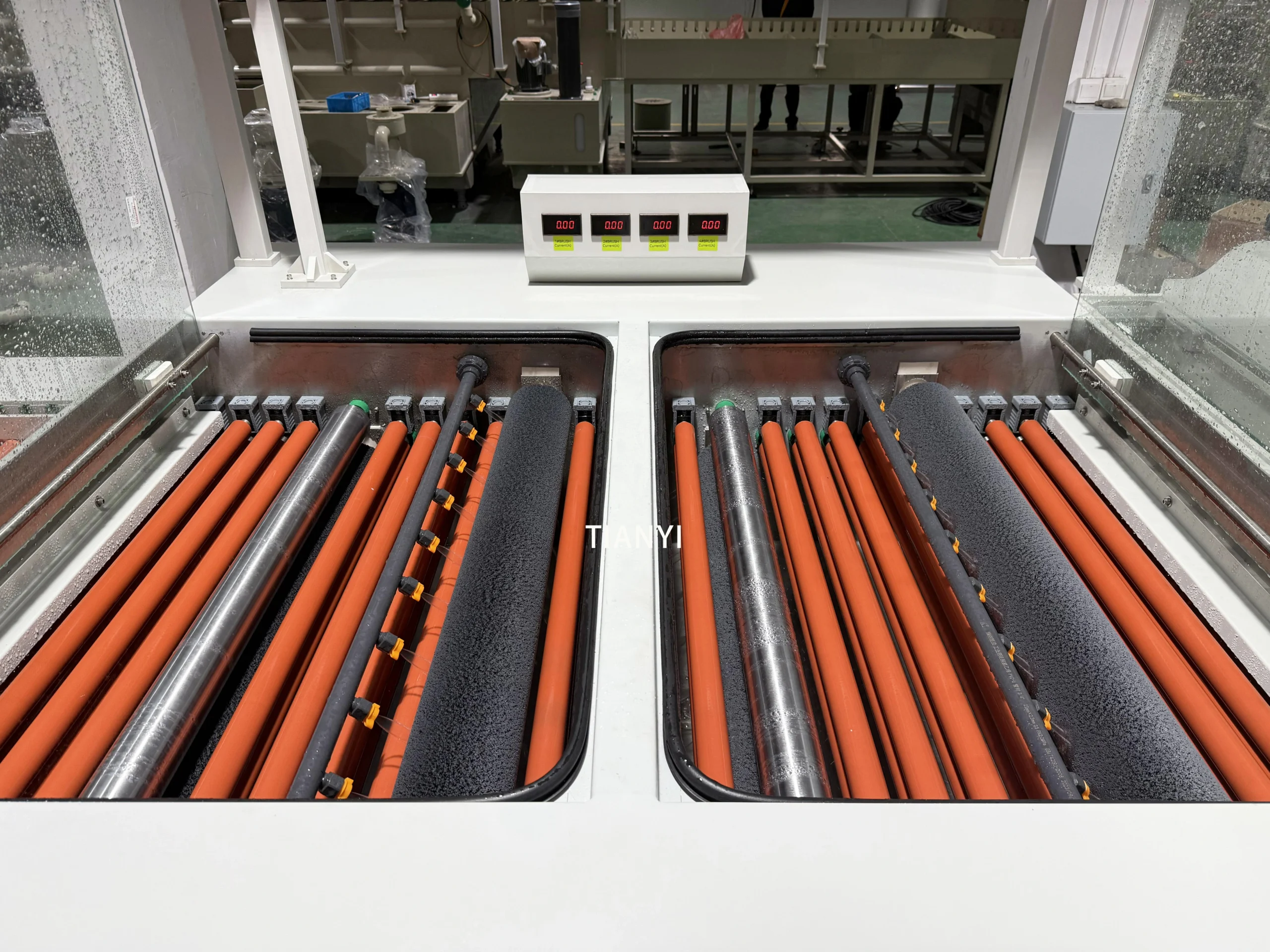

The brushing rollers can be configured with nylon, non-woven, or ceramic brushes, depending on the application requirements. For stainless steel panels with perforations or holes, the brushing process is complemented by high-pressure washing to ensure thorough and complete cleaning.

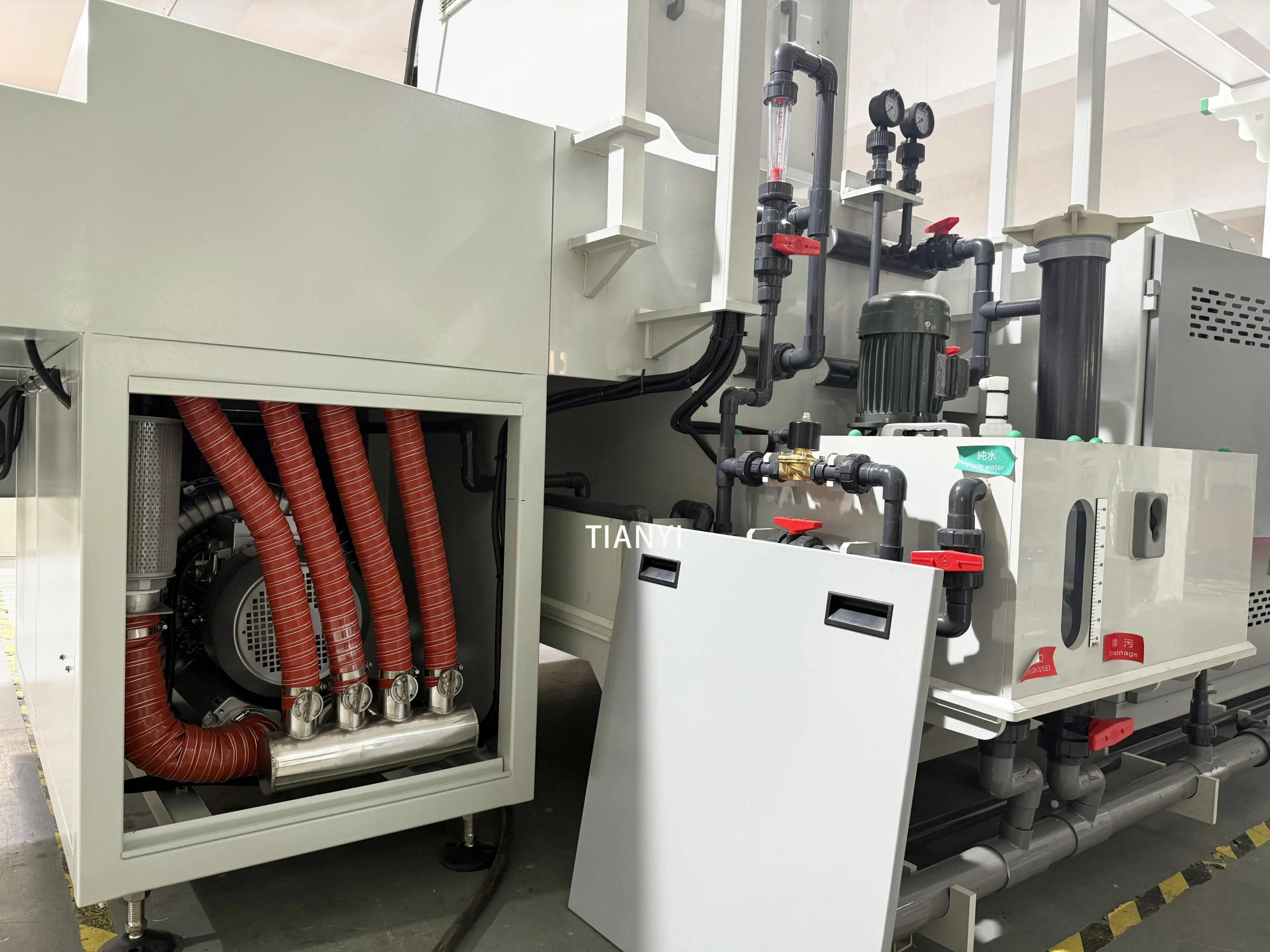

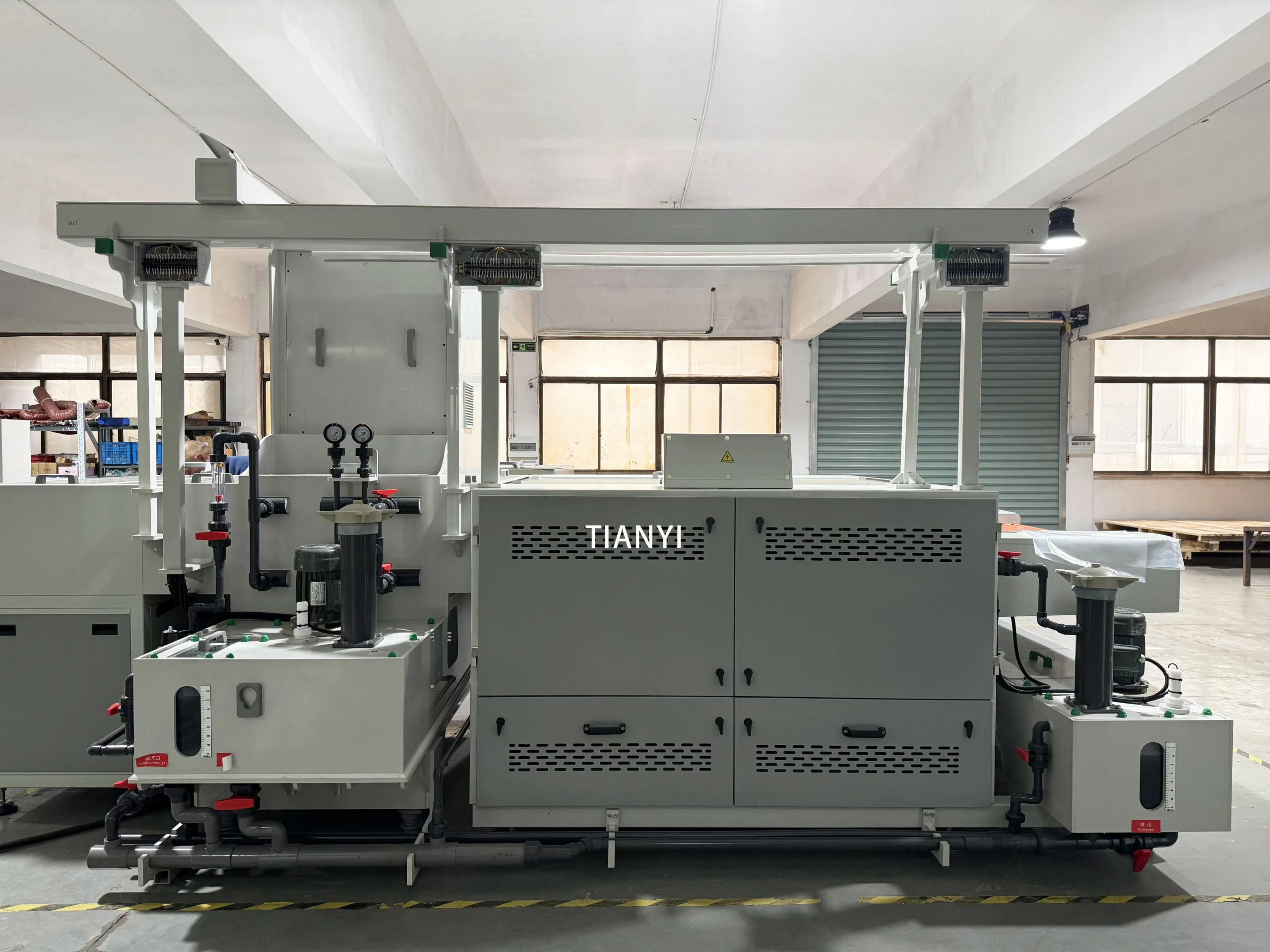

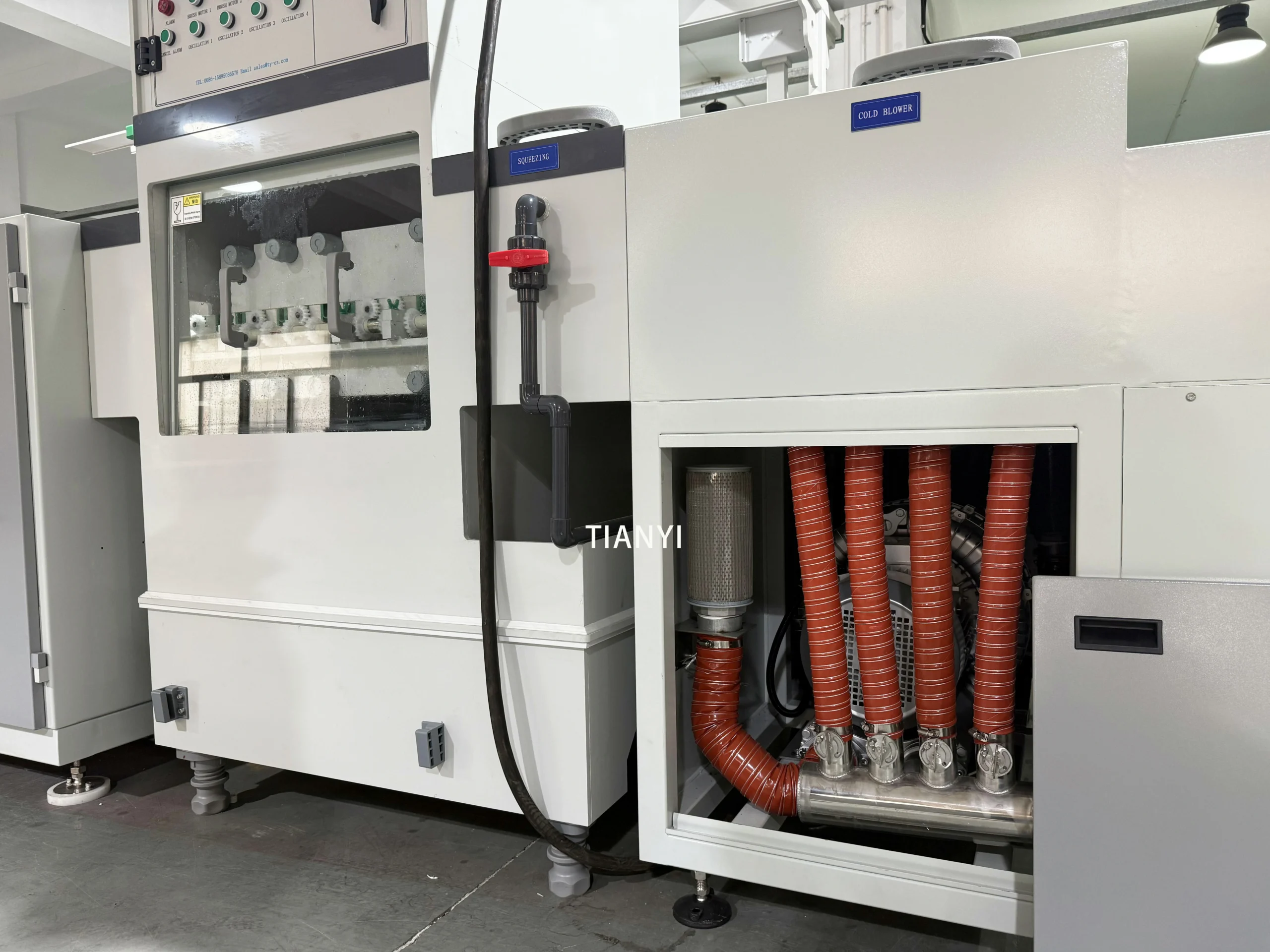

Equipped one PVC water tank for washing water recycling in brushing module. Cold blower speed by VFD control.
