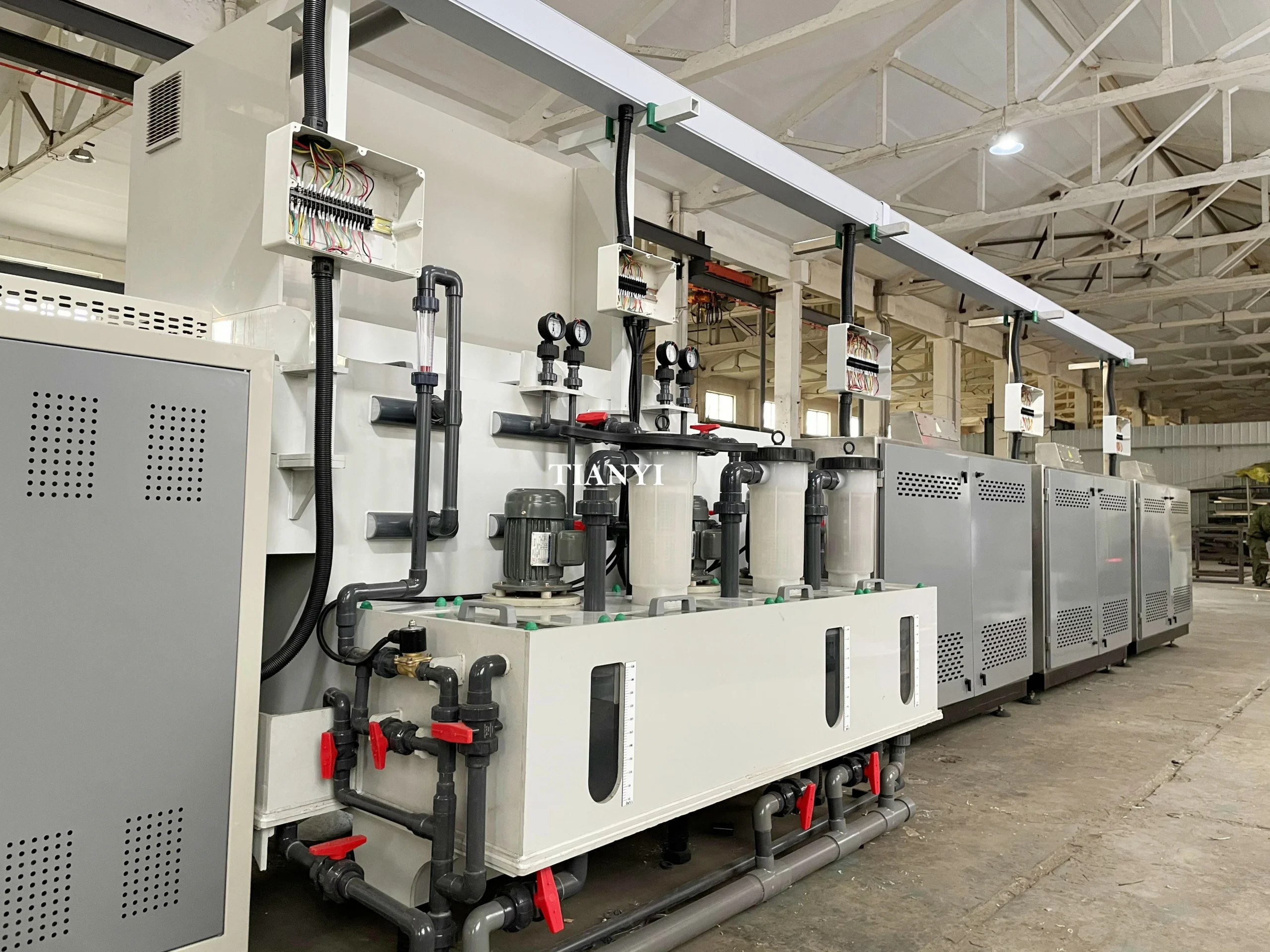

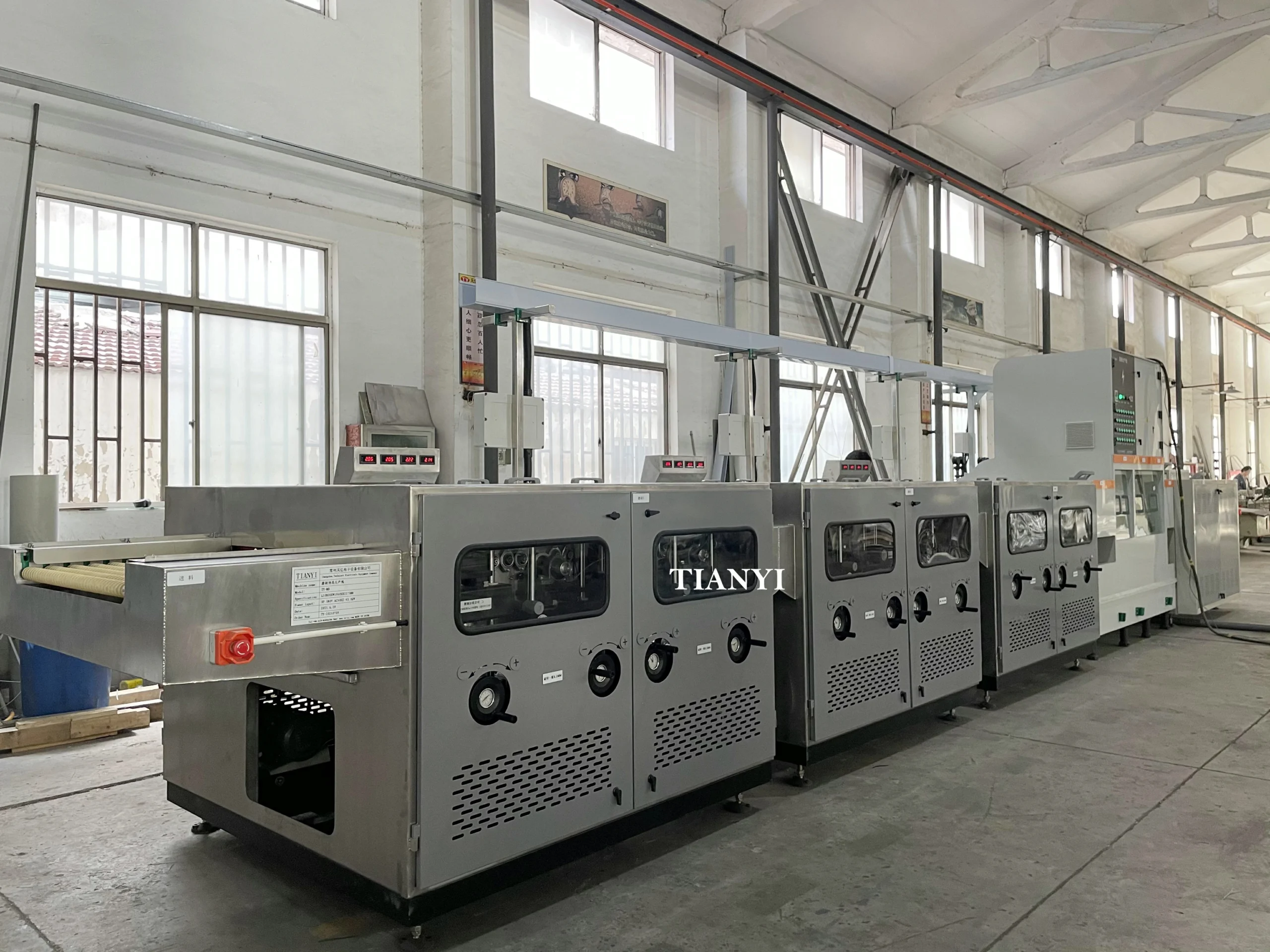

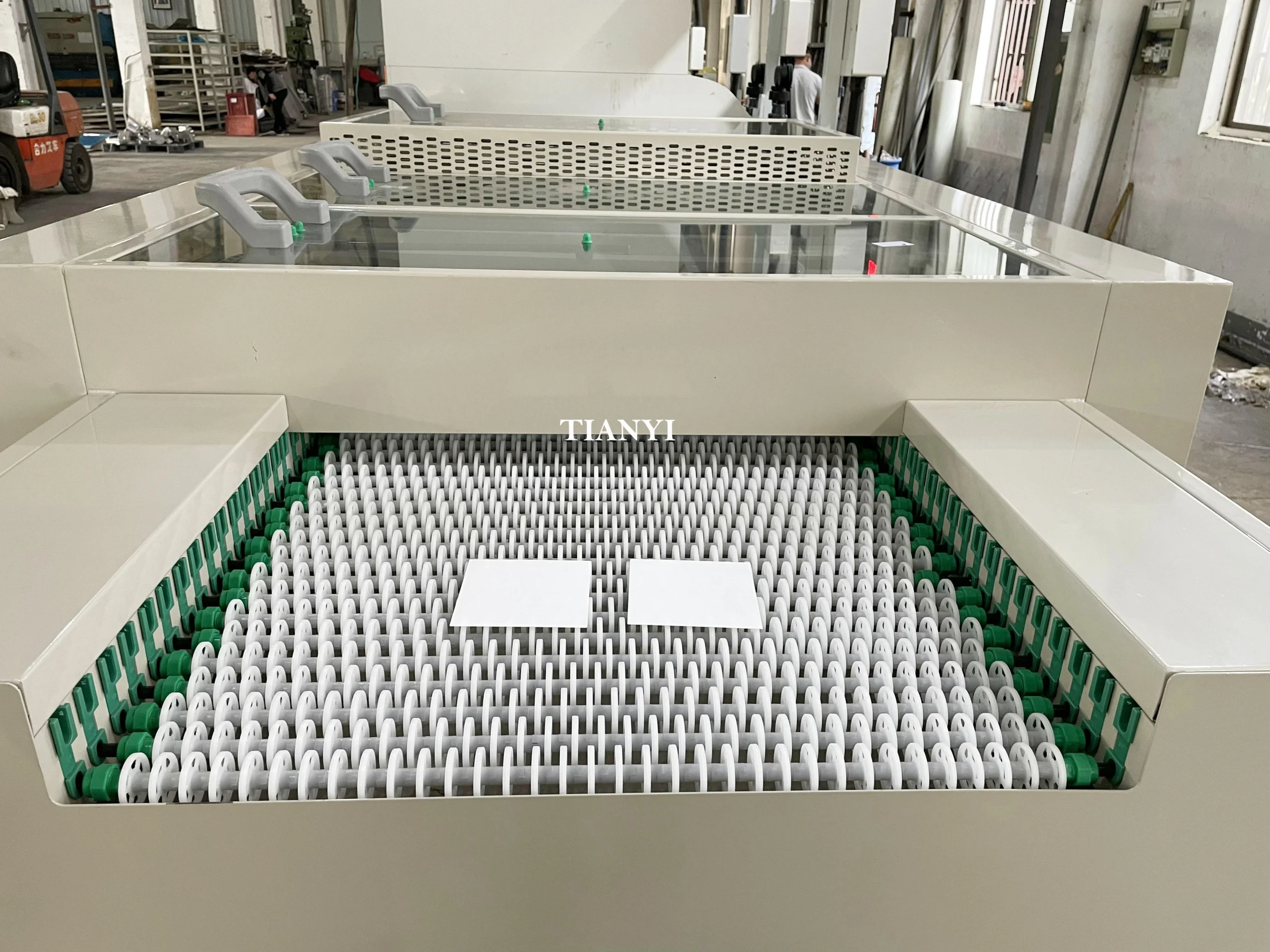

Ceramic substrate cleaning and brushing machine
Specifications:
- Brushing machine process includes: Loading → Brushing → Recycle water washing(1/2) → DI water washing→Squeezing → Cold blower → Hot air drying → Unloading.
- Dimension: L10,800xW1960xH2275MM
- Effective working width: 800mm
- Brushing heating/cooling: None

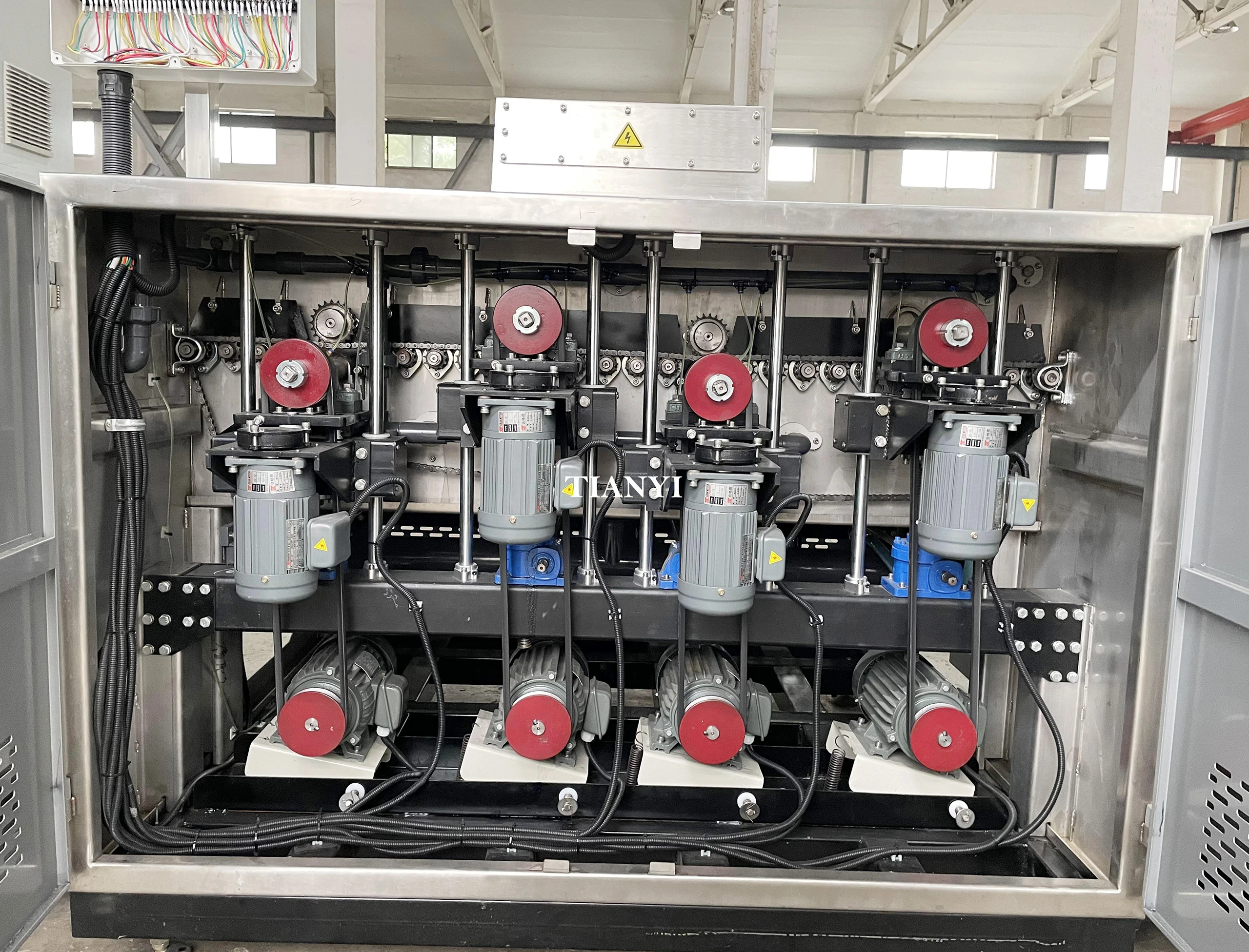

- Brushing motor: 1.5KW 12SET with 200W 12SET Oscillation motor
- Total power consumption: 43.3KW
- Guarantee: 1year
- Optional: Auto loader and Unloader.
+8615895086578
Mobile
sales@ty-cz.com
Brushing machine is waiting for you.

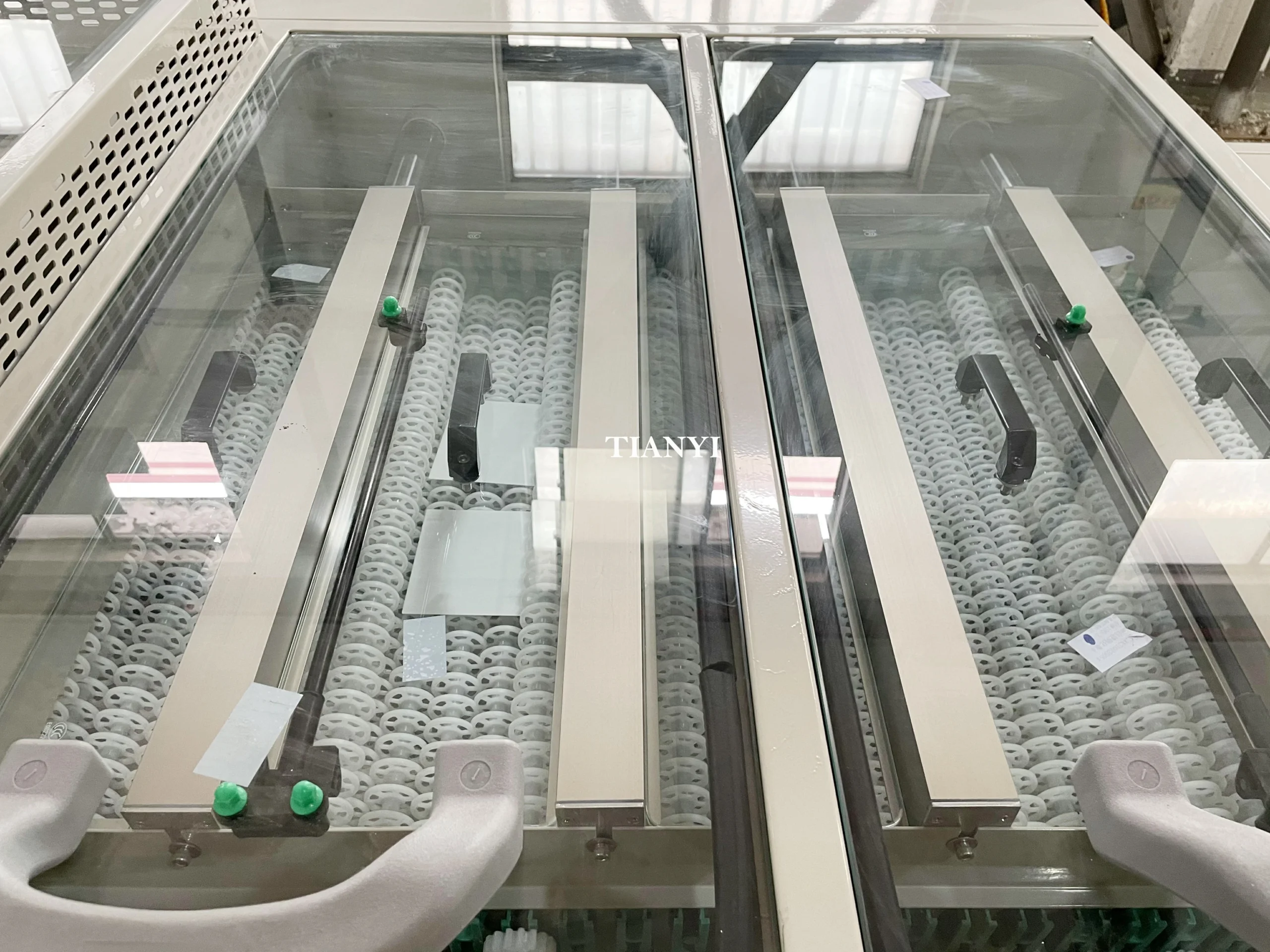

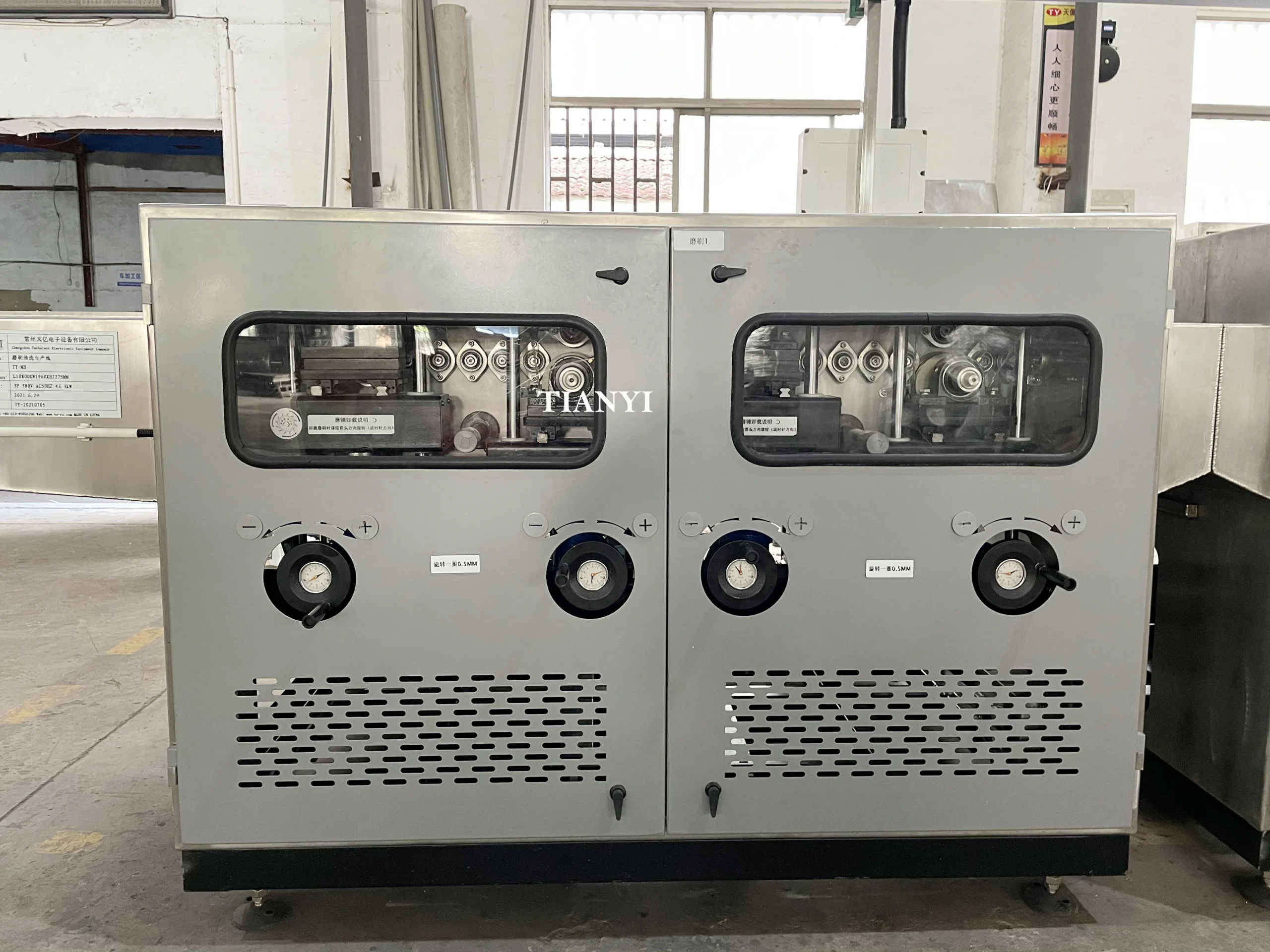

The brushing module is constructed with a robust stainless steel frame, other plastic part made of PVC sheets for excellent corrosion resistance.

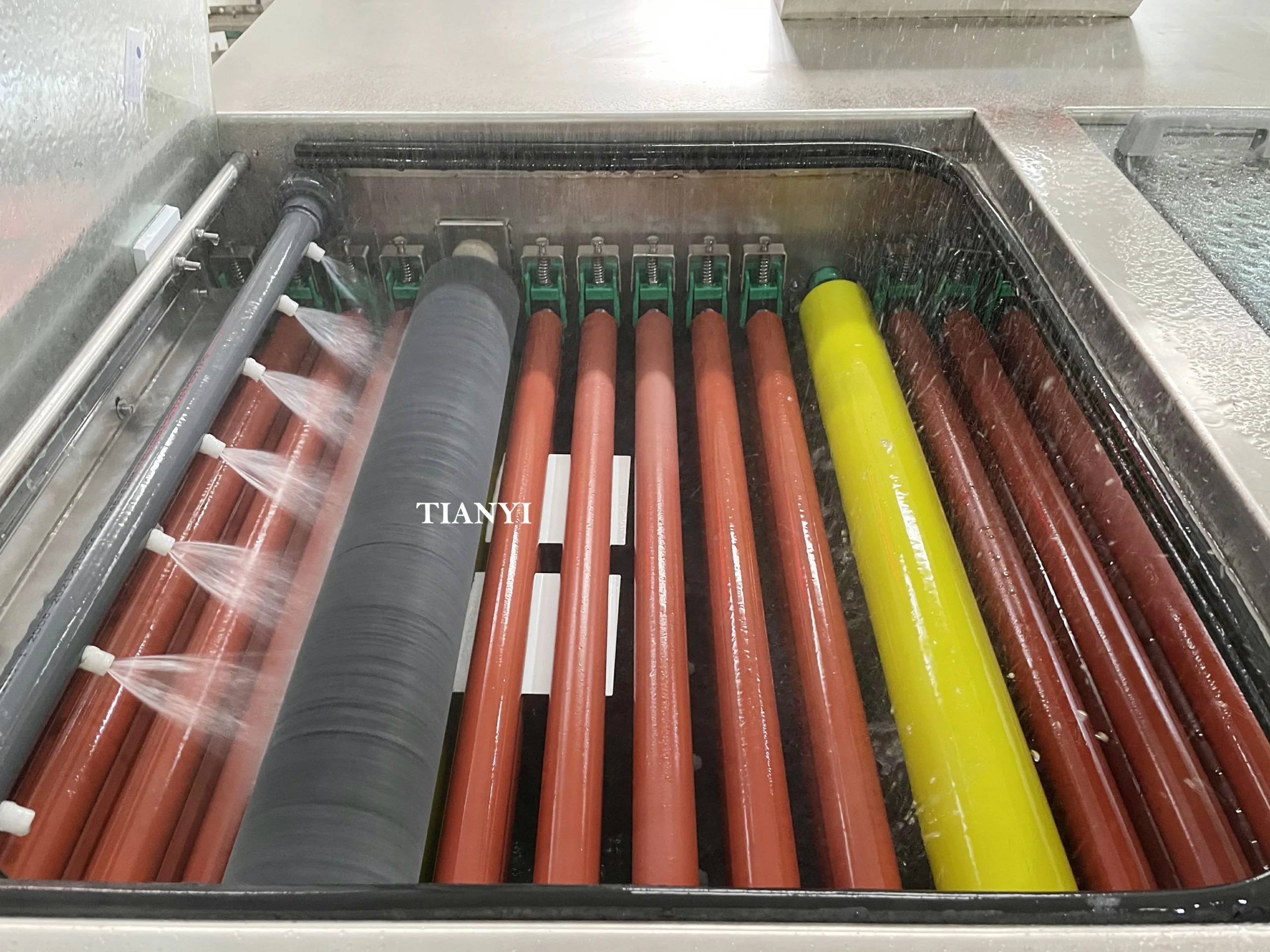

The brushing rollers be configured with nylon brushes, specially applied to ceramic substrate cleaning and brushing process. Equipped one PVC water tank for washing water recycling in brushing module.
