Acid Etching Machine for Stainless Steel Label, Nameplate, Decorative Plates
Specifications:
- Etching machine process includes: Loading → Etching → Recycle washing (1/2/3) → DI water rinsing → Squeezing → Unloading.
- Dimension: L6065xW2750xH2550MM
- Effective working width: 1000mm
- Etching heating/cooling: Electric heating with cooling coil
- Etching pump: 7.5HP 2SET double side Etching
- Total power consumption: 40.4KW
- Guarantee: 1year
- Optional: Acid regeneration system; Cooling chiller; waste gas scrubber(acid fume treatment）
+8615895086578
Mobile
sales@ty-cz.com
Etching machine is waiting for you.
Effective etching spraying length is 2 meter, constructed with a corrosion-resistant body and advanced PP material, acid etching machine assemble full pressure gauge for medium precise etching production.
Etching machine is equipped with acid regeneration system for better chemical concentration control, convenient in actual operation.

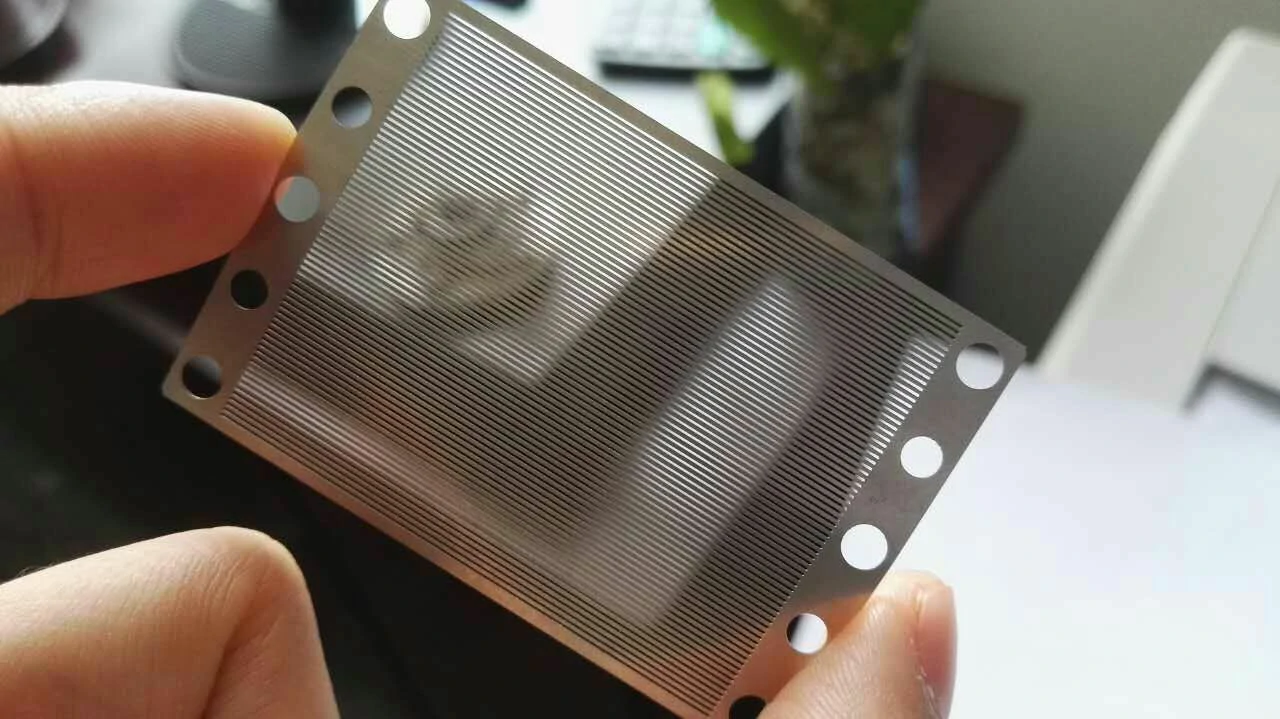

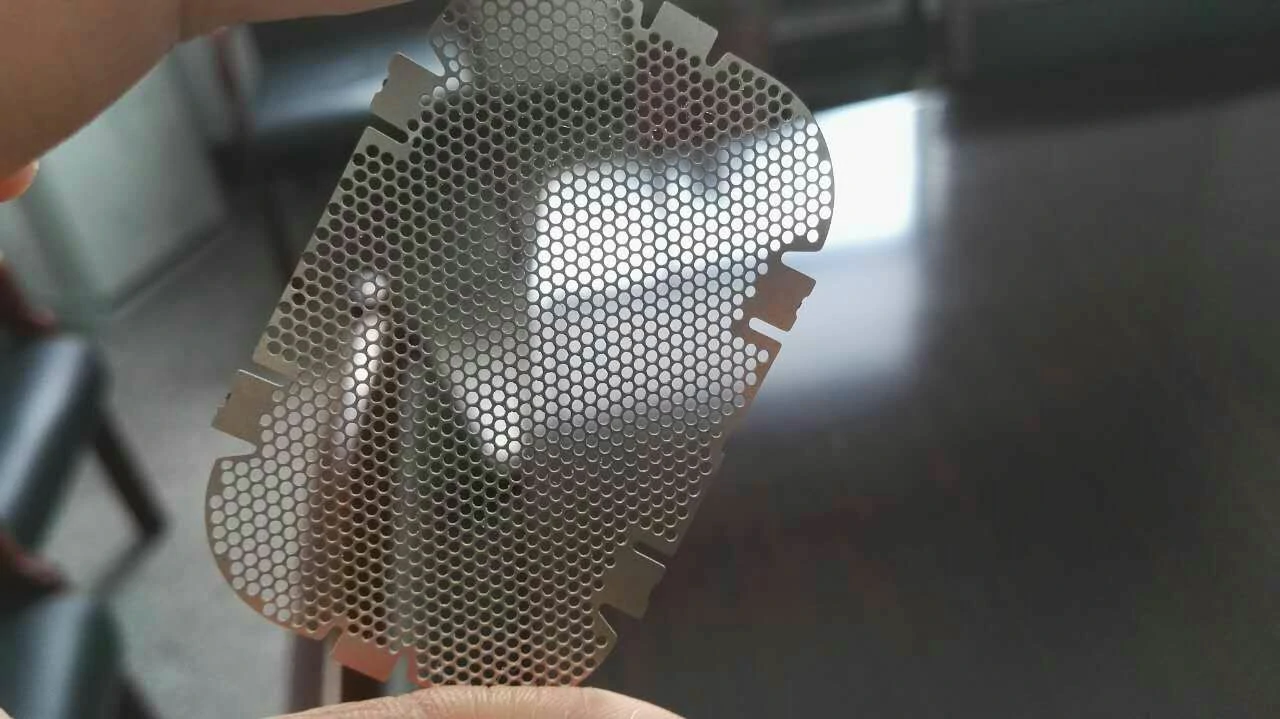

With easy to operate controls, automatic temperature regulation, and effective exhaust and fume treatment, the machine offer a safe and user friendly working environment. Widely applied in signage manufacturing, nameplate production, electronic labeling and decorative stainless steel processing.
