Metal Etching machine for Stainless steel Elevator door
Specifications:
- Etching machine process includes: Loading → Etching → Recycle washing (1/2) → Squeezing → Unloading
- Dimension: L22,050xW3,642xH2,670MM
- Effective working width: 2600mm
- Etching heating/cooling: Electric heating with cooling coil
- Etching pump: 10HP 8SET double side Etching
- Total power consumption: 123KW
- Guarantee: 1year
- Optional: Acid regeneration system; Cooling chiller; waste gas scrubber(acid fume treatment)
+8615895086578
Mobile
sales@ty-cz.com
Etching machine is waiting for you.

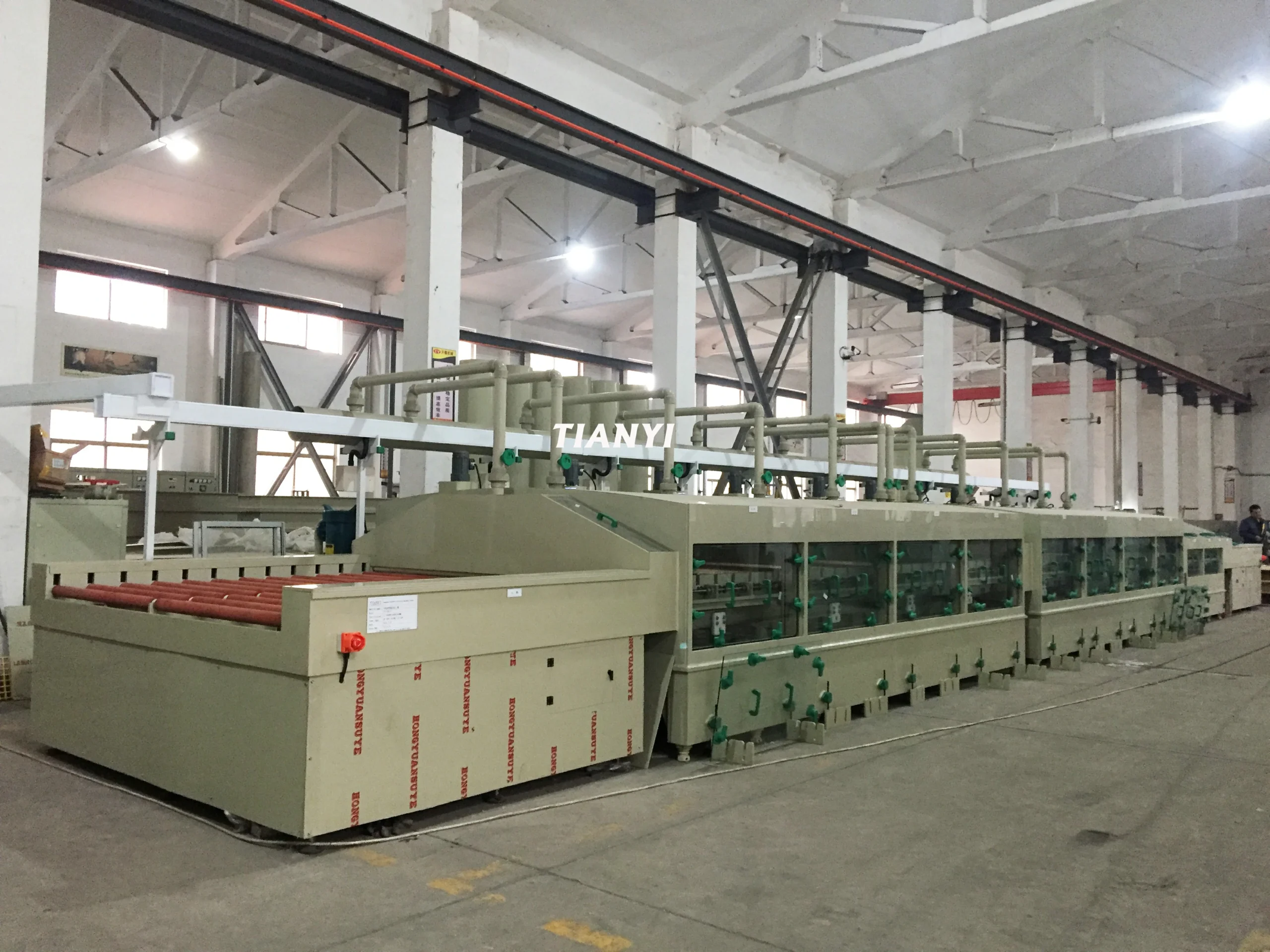

Effective etching spraying length is 8 meter, working width 2600mm, specially for large stainless steel panel.

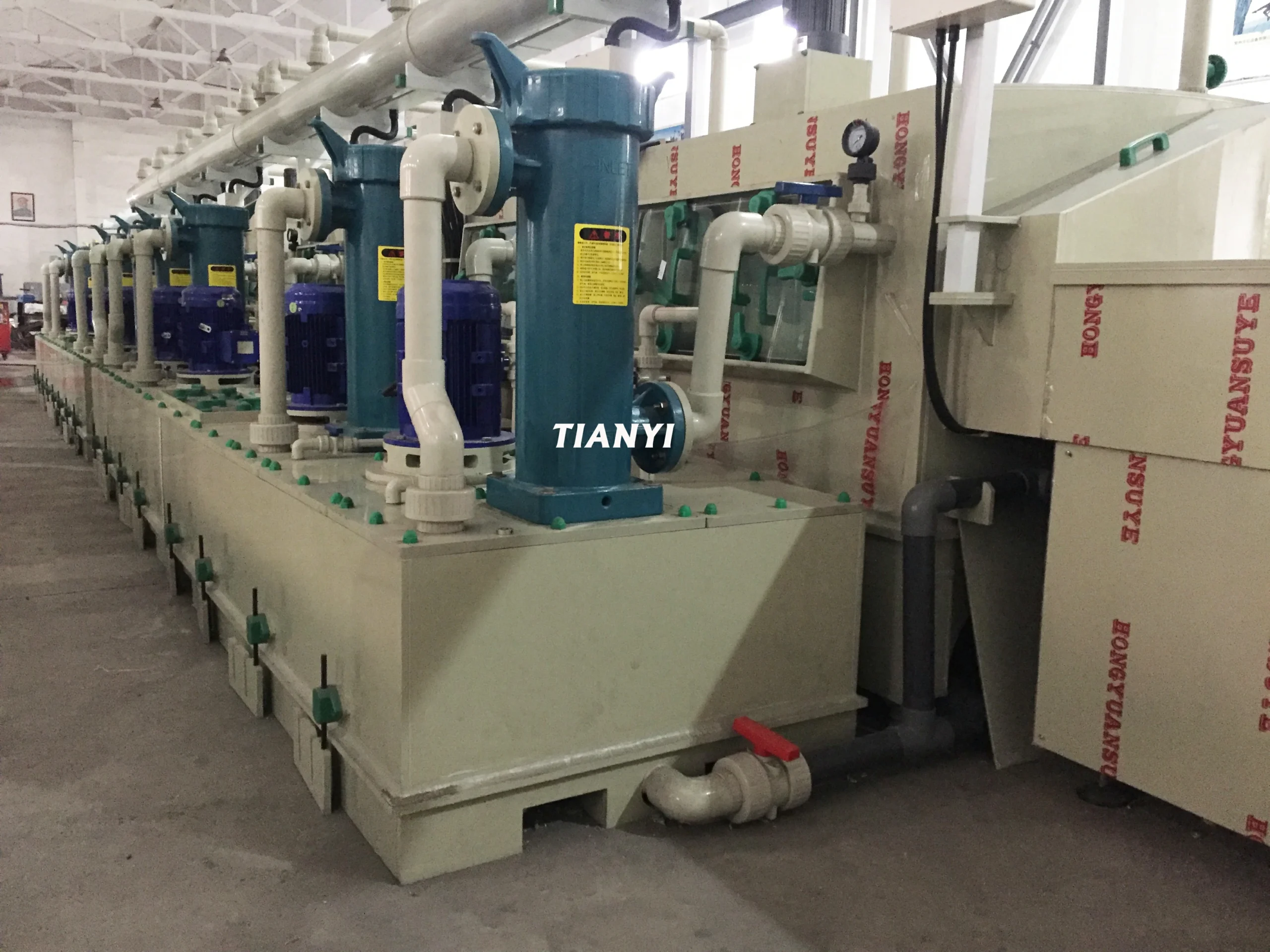

Constructed with a corrosion-resistant body and advanced PP material. Bottom spraying in etching module, less side corrosion during etching process.
