Frosting etching machine for pattern glass
Specifications:
- Etching machine process includes: Loading → Frosting Etching → Recycle washing (1/2/3) → DI water washing →Squeezing → Inspection → Soak → Stripping 1 → Stripping 2 → Recycle washing (4/5/6) → DI water washing
- →Squeezing → Cold blower →Hot air drying → Unloading
- Dimension: L37,200xW5,090xH2,600MM
- Effective working width: 1500mm
- Etching heating/cooling: Electric heating with cooling coil
- Etching pump: 7.5HP 16SET Double side Etching
- Total power consumption: 395KW
- Guarantee: 1year
- Optional: Acid regeneration system; Cooling chiller; waste gas scrubber(acid fume treatment)
+8615895086578
Mobile
sales@ty-cz.com
Etching machine is waiting for you.

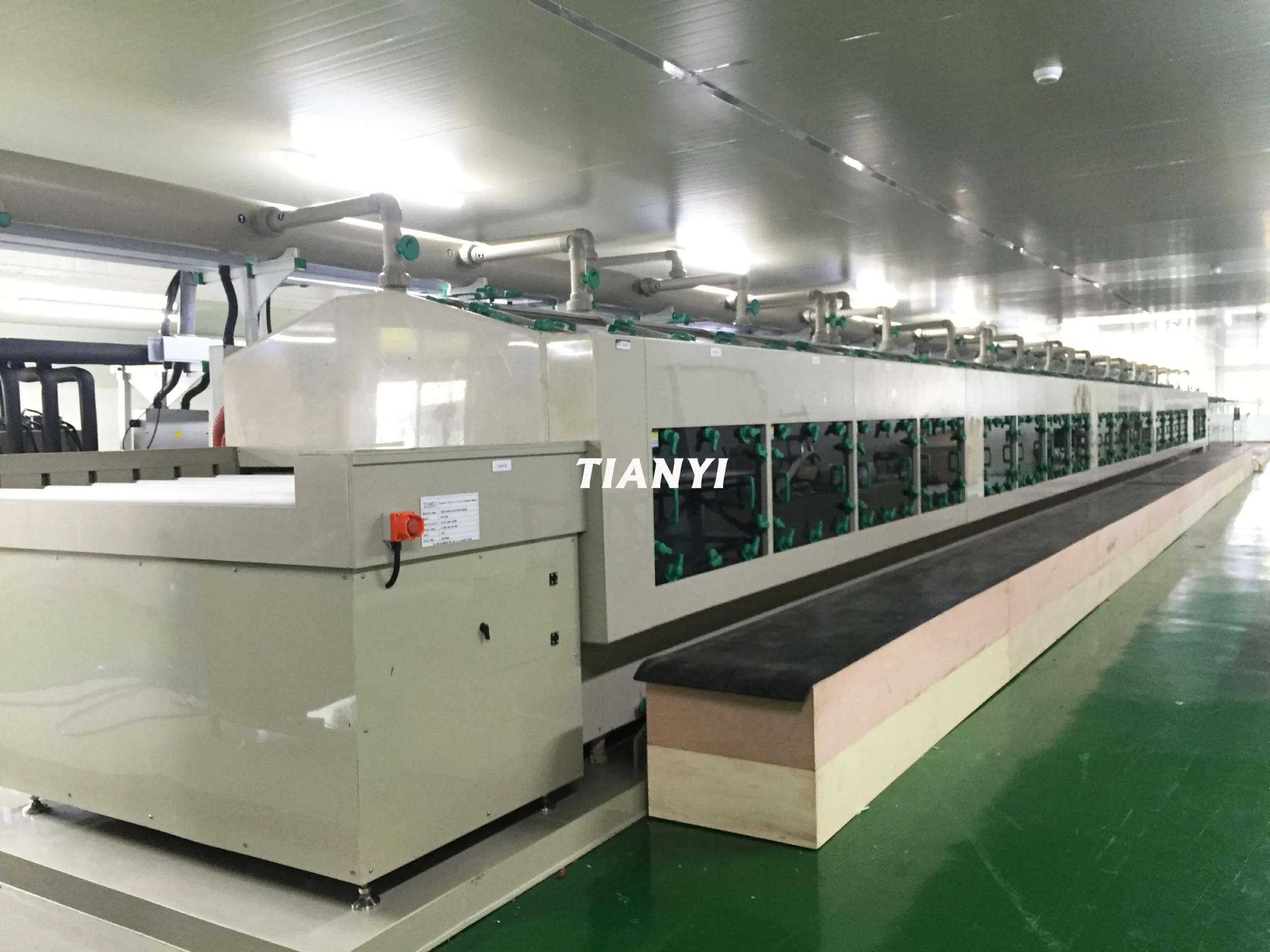

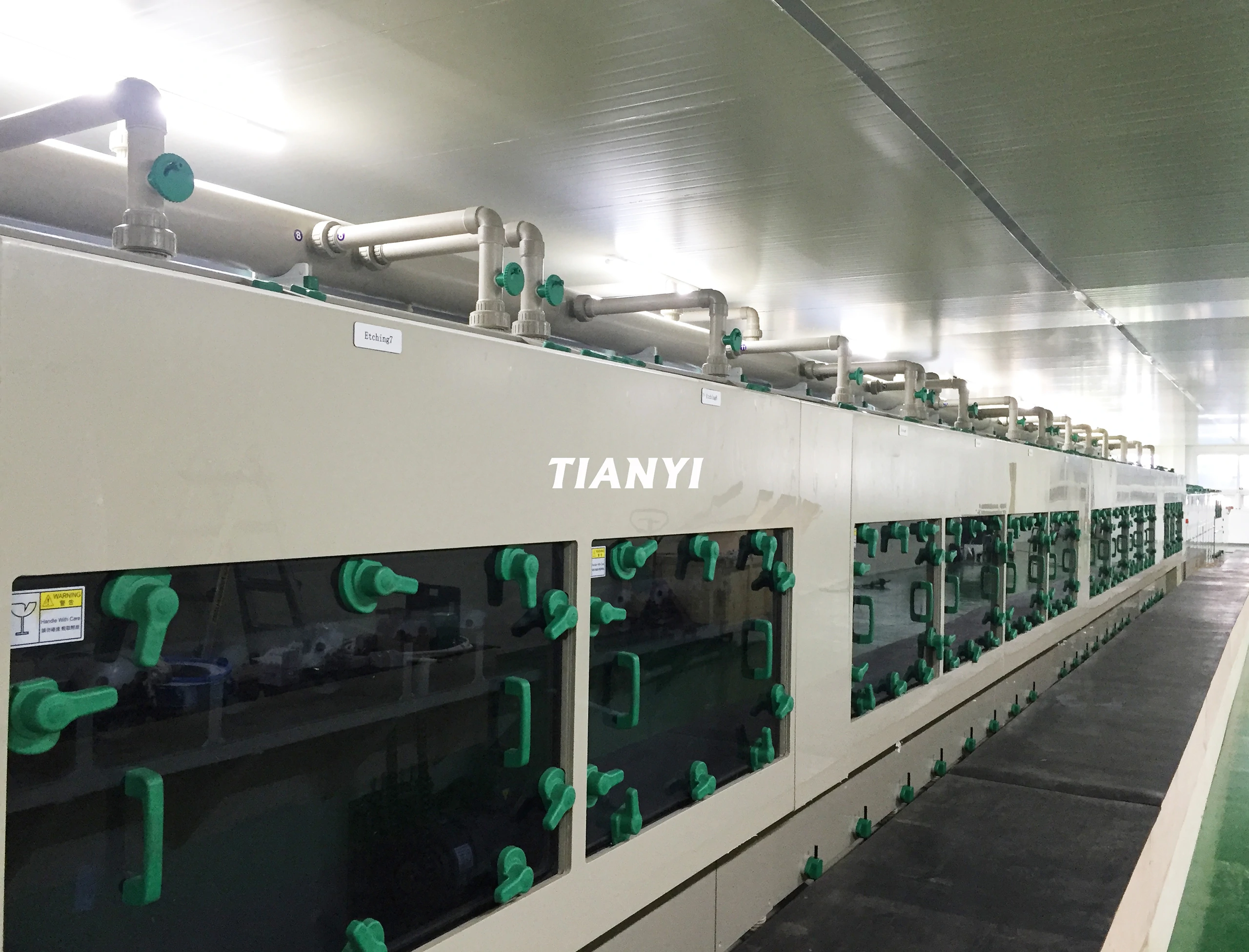

Frosted glass etching is carried out using a hydrofluoric acid-based chemical solution. The etching line is equipped with an automatic glass loader and unloader at the entry and exit sections. For patterned glass processing, a silk screen printing unit and drying oven can be integrated prior to the etching stage.

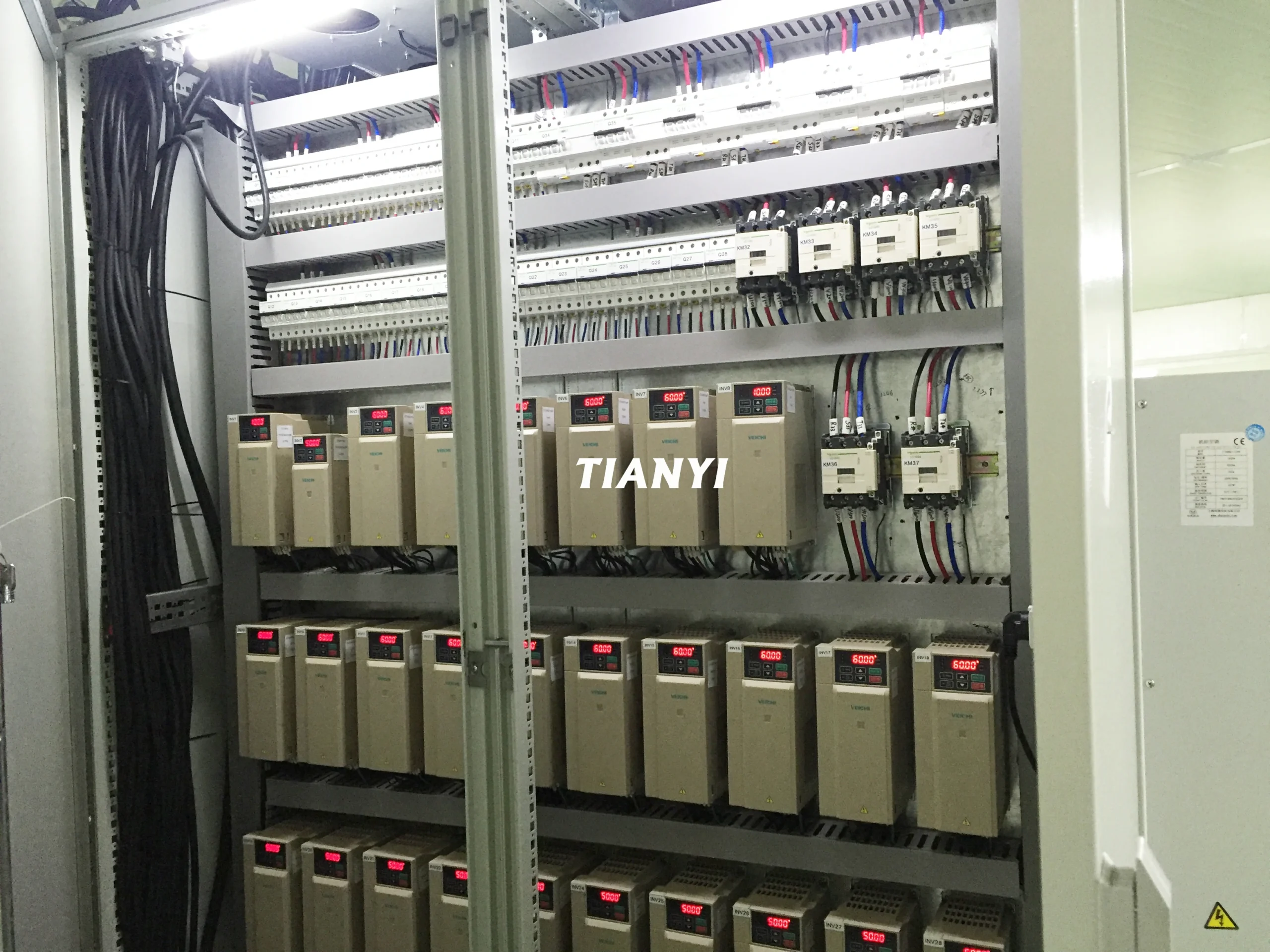

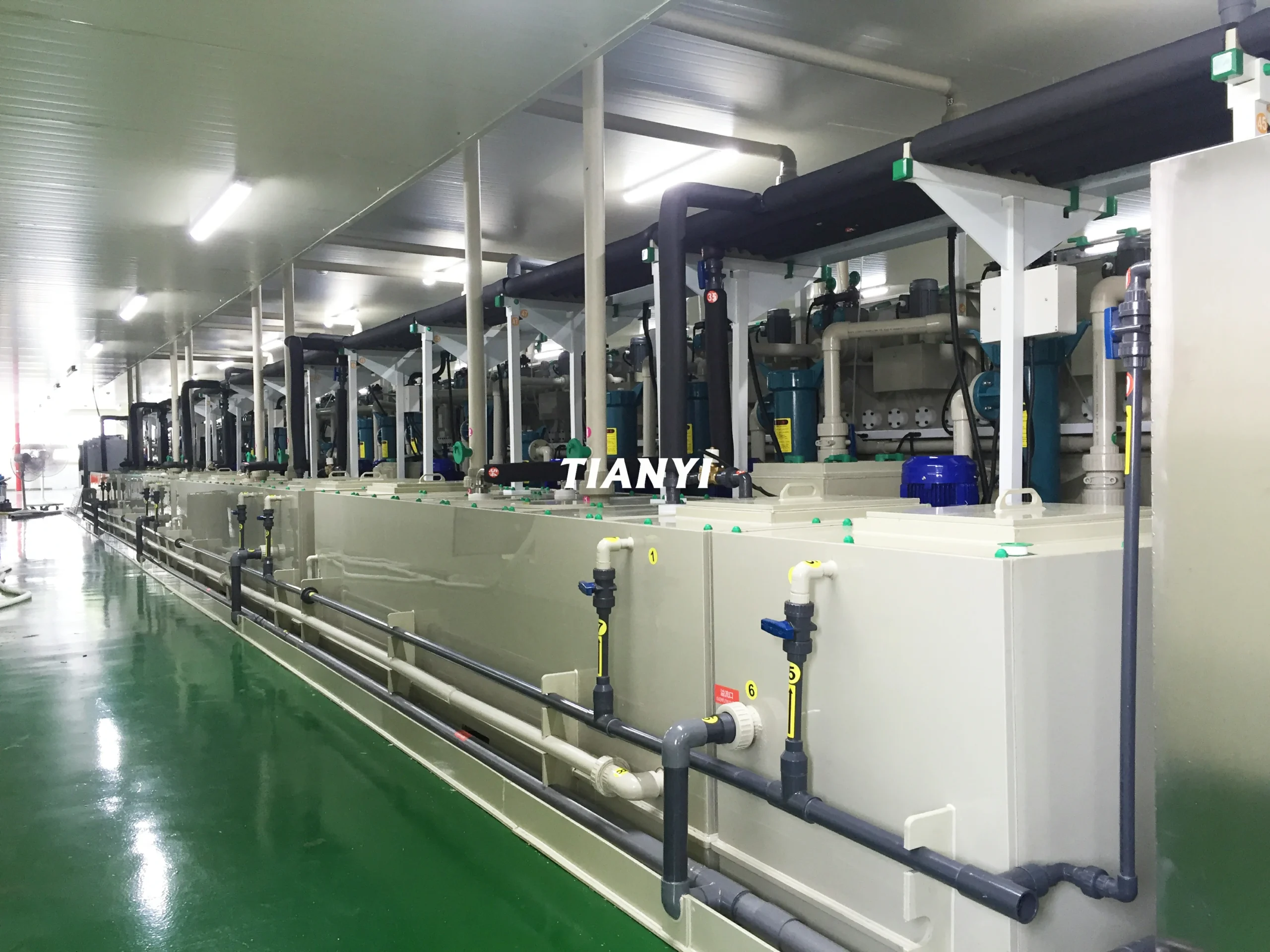

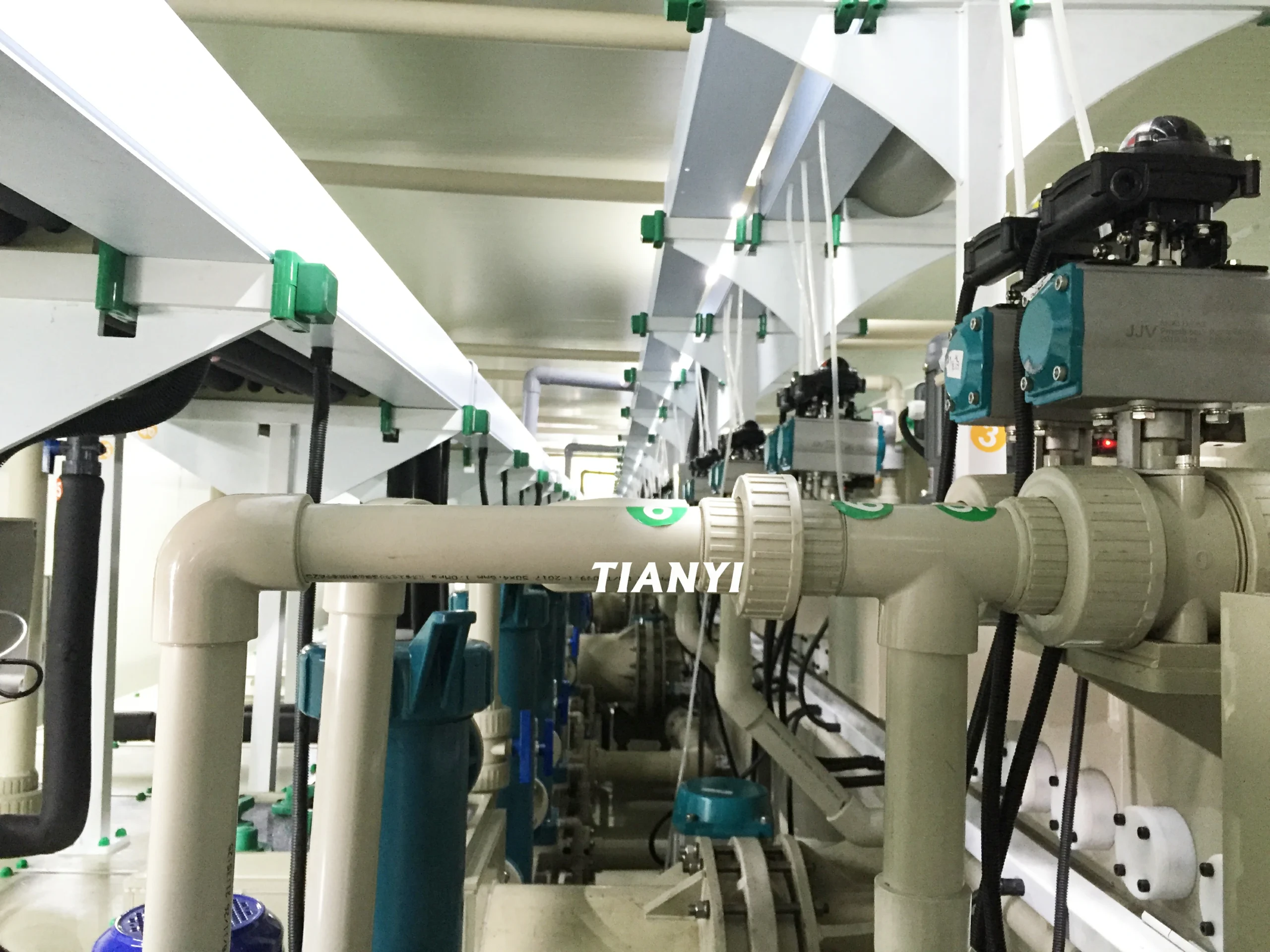

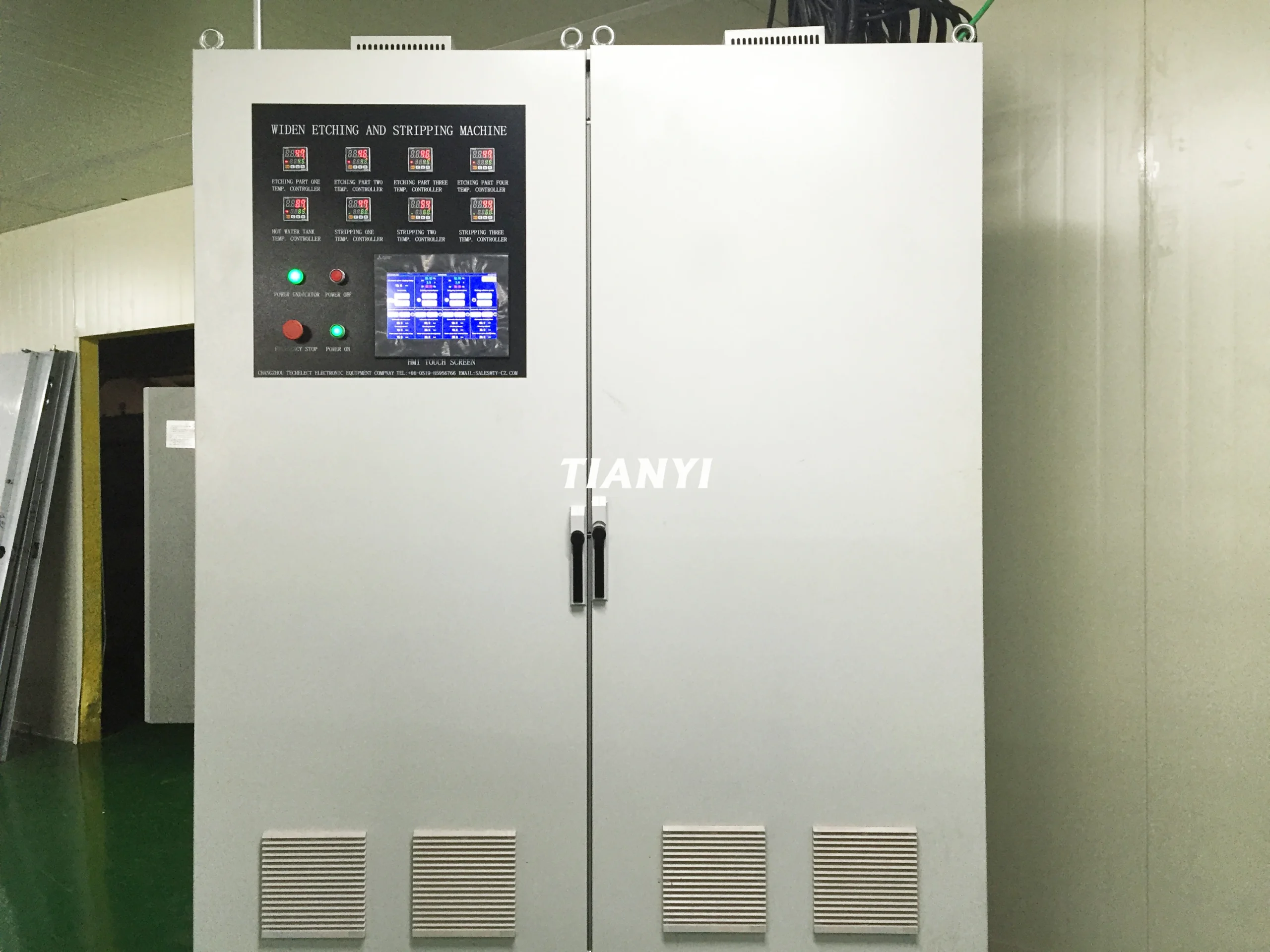

Constructed with a corrosion-resistant body and advanced PP material. The electrical cabinet is a Rittal enclosure with integrated air conditioning, rated at IP55. The etching pump is equipped with VFD control to ensure precise regulation of etching pressure. A dedicated tank cleaning system is automatically activated when the machine stops, operated through pneumatic valve control.
